TR545D Nickel O-Ring Clamp-In Truck Valve Stem 3.5" 60deg. Bend - 1 Valve

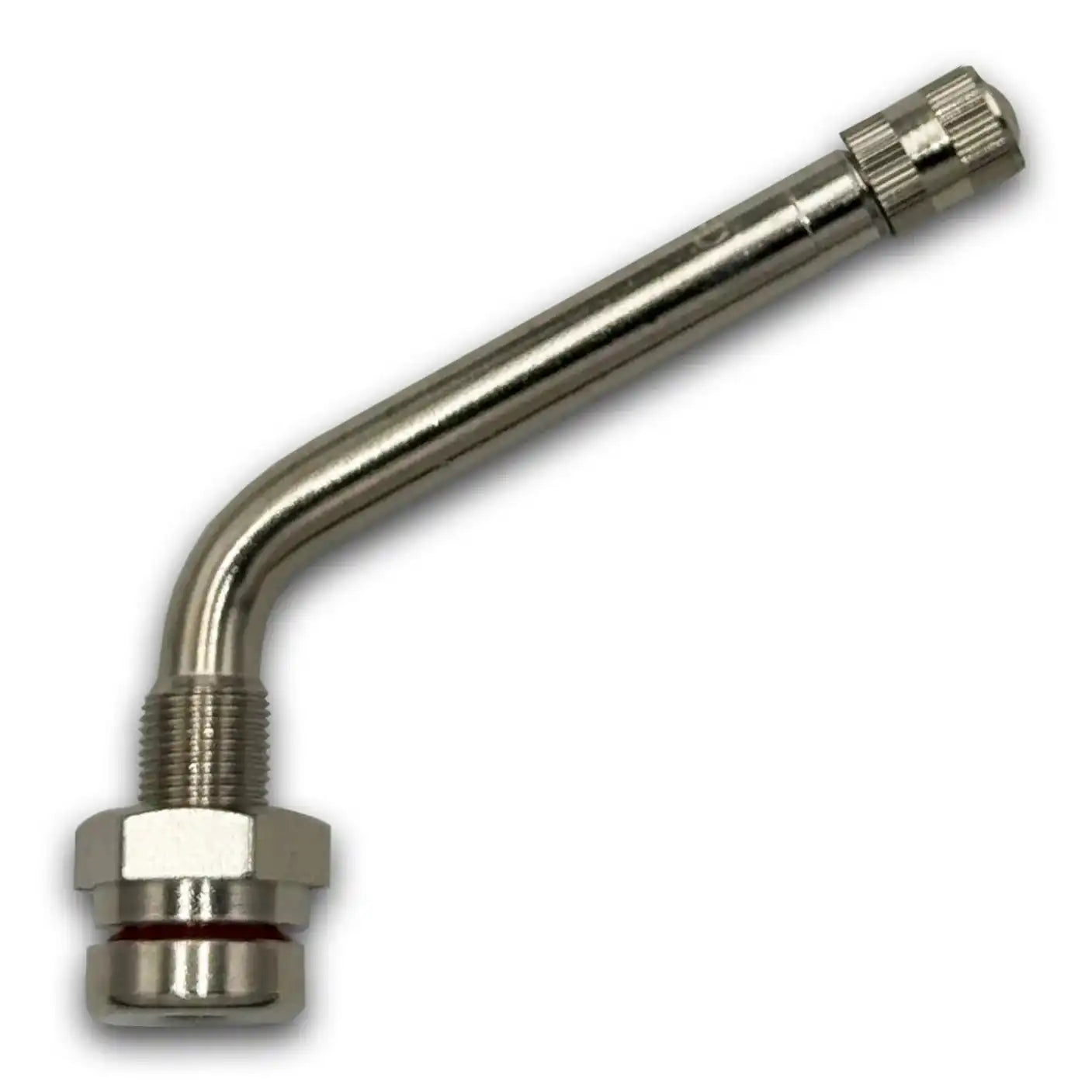

The TR545D is a 3.5" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The combination of extended length and 60deg. angle provides excellent access to deep, offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 60deg. bend for deep offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545D, 1-504D, 24243, VS-545D, 17-545D, VH736.
Q: When would I choose the TR545D?
The TR545D combines 3.5" length with a 60deg. angle — use it when the valve pocket is both deep enough to need extra extension and offset enough to require a bent stem for air chuck access.
Q: What valve hole does the TR545D fit?
The TR545D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR545D differ from the TR545E?
Both are 3.5" 0.382" angled stems. The TR545D has a 60deg. bend while the TR545E has a 75deg. bend. Choose the TR545E when you need a steeper angle.
Q: What cross-references match the TR545D?
The TR545D cross-references to TV-545D, 1-504D, 24243, VS-545D, 17-545D, and VH736.
Description
The TR545D is a 3.5" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The combination of extended length and 60deg. angle provides excellent access to deep, offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 60deg. bend for deep offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545D, 1-504D, 24243, VS-545D, 17-545D, VH736.
Q: When would I choose the TR545D?
The TR545D combines 3.5" length with a 60deg. angle — use it when the valve pocket is both deep enough to need extra extension and offset enough to require a bent stem for air chuck access.
Q: What valve hole does the TR545D fit?
The TR545D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR545D differ from the TR545E?
Both are 3.5" 0.382" angled stems. The TR545D has a 60deg. bend while the TR545E has a 75deg. bend. Choose the TR545E when you need a steeper angle.
Q: What cross-references match the TR545D?
The TR545D cross-references to TV-545D, 1-504D, 24243, VS-545D, 17-545D, and VH736.
