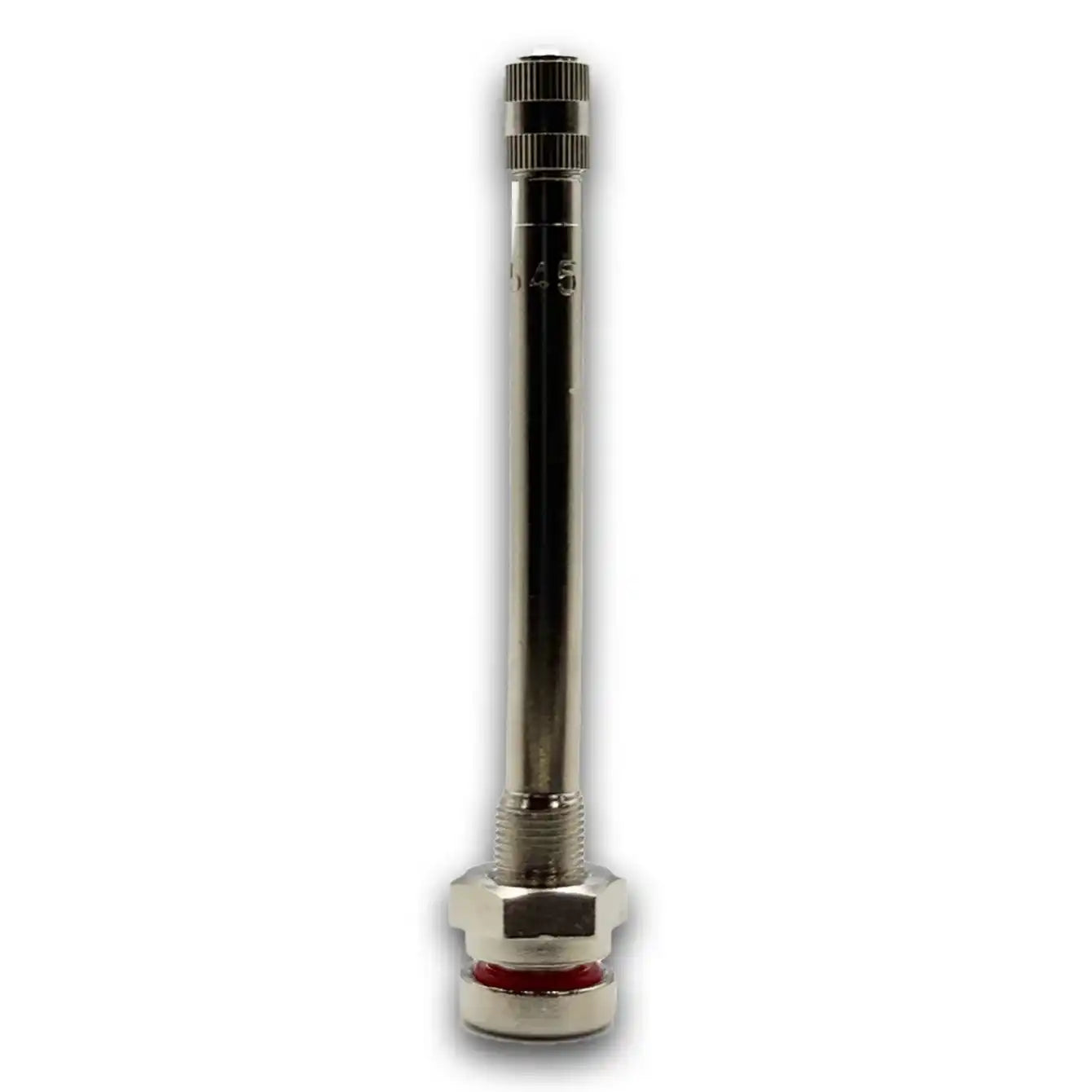

TR545 Nickel O-Ring Clamp-In Truck Valve Stem 3.5" Straight - 1 Valve
The TR545 is a 3.5" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" valve holes where a longer extension is needed for deeper valve pockets.
- Height: 3.5" (3-1/2") straight for deeper 0.382" hole valve pockets on aluminum truck wheels.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545, 1-504, 24242, VS-545, 17-545, VH735.
Q: What valve hole does the TR545 require?
The TR545 fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment applications.
Q: When would I choose the TR545 over shorter O-ring stems?
At 3.5", the TR545 suits wheel applications where the valve pocket sits deeper and shorter stems like the TR543 (2.4") or TR544 (2.9") don’t provide enough extension.
Q: Are there bent versions of the TR545?
Yes. The TR545D has a 60deg. bend and the TR545E has a 75deg. bend, both at the same 3.5" length for offset valve pocket applications.
Q: What cross-references match the TR545?
The TR545 cross-references to TV-545, 1-504, 24242, VS-545, 17-545, and VH735.
Description
The TR545 is a 3.5" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" valve holes where a longer extension is needed for deeper valve pockets.
- Height: 3.5" (3-1/2") straight for deeper 0.382" hole valve pockets on aluminum truck wheels.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545, 1-504, 24242, VS-545, 17-545, VH735.
Q: What valve hole does the TR545 require?
The TR545 fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment applications.
Q: When would I choose the TR545 over shorter O-ring stems?
At 3.5", the TR545 suits wheel applications where the valve pocket sits deeper and shorter stems like the TR543 (2.4") or TR544 (2.9") don’t provide enough extension.
Q: Are there bent versions of the TR545?
Yes. The TR545D has a 60deg. bend and the TR545E has a 75deg. bend, both at the same 3.5" length for offset valve pocket applications.
Q: What cross-references match the TR545?
The TR545 cross-references to TV-545, 1-504, 24242, VS-545, 17-545, and VH735.
