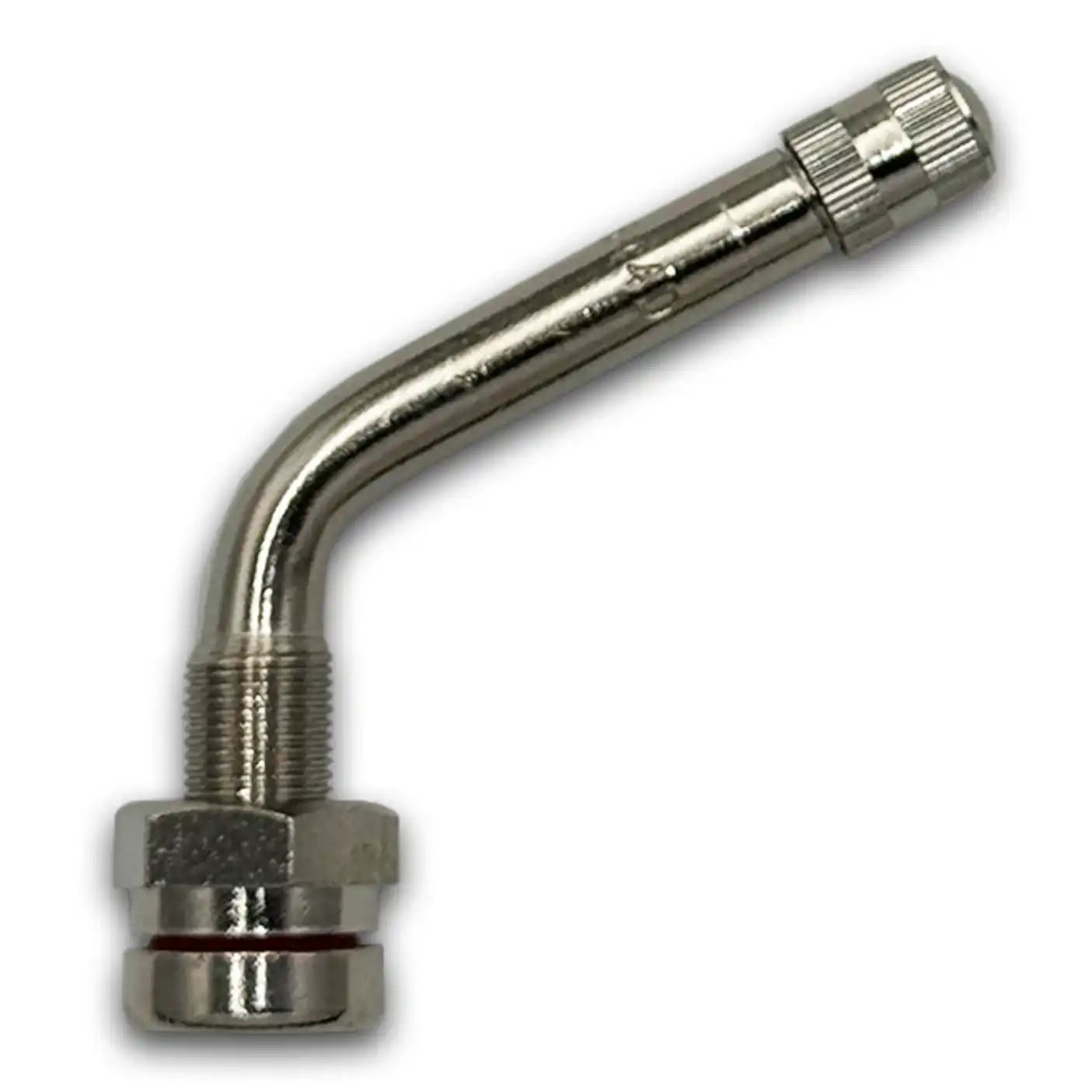

TR544D Nickel O-Ring Clamp-In Truck Valve Stem 2.9" 60deg. Bend - 1 Valve
The TR544D is a 2.9" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The angled design helps access offset valve pockets on aluminum truck wheels with 0.382" holes without removing the wheel.
- Height: 2.9" (2-9/10") with 60deg. bend for offset valve pocket access on aluminum wheels.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-544D, 1-503D, 24250, VS-544D, 17-544D, VH734.
Q: Why choose the TR544D over the straight TR544?
The 60deg. bend makes inflation easier when the valve pocket is offset or partially blocked by the wheel structure, allowing a more comfortable air chuck connection angle.
Q: What valve hole does the TR544D fit?
The TR544D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Is there a 75deg. version of this stem?
The 543E and 545E series offer 75deg. bends at 2.4" and 3.5" respectively, but there is no 75deg. version at the 2.9" length. The TR544D at 60deg. is the angled option for this size.
Q: What cross-references match the TR544D?
The TR544D cross-references to TV-544D, 1-503D, 24250, VS-544D, 17-544D, and VH734.
