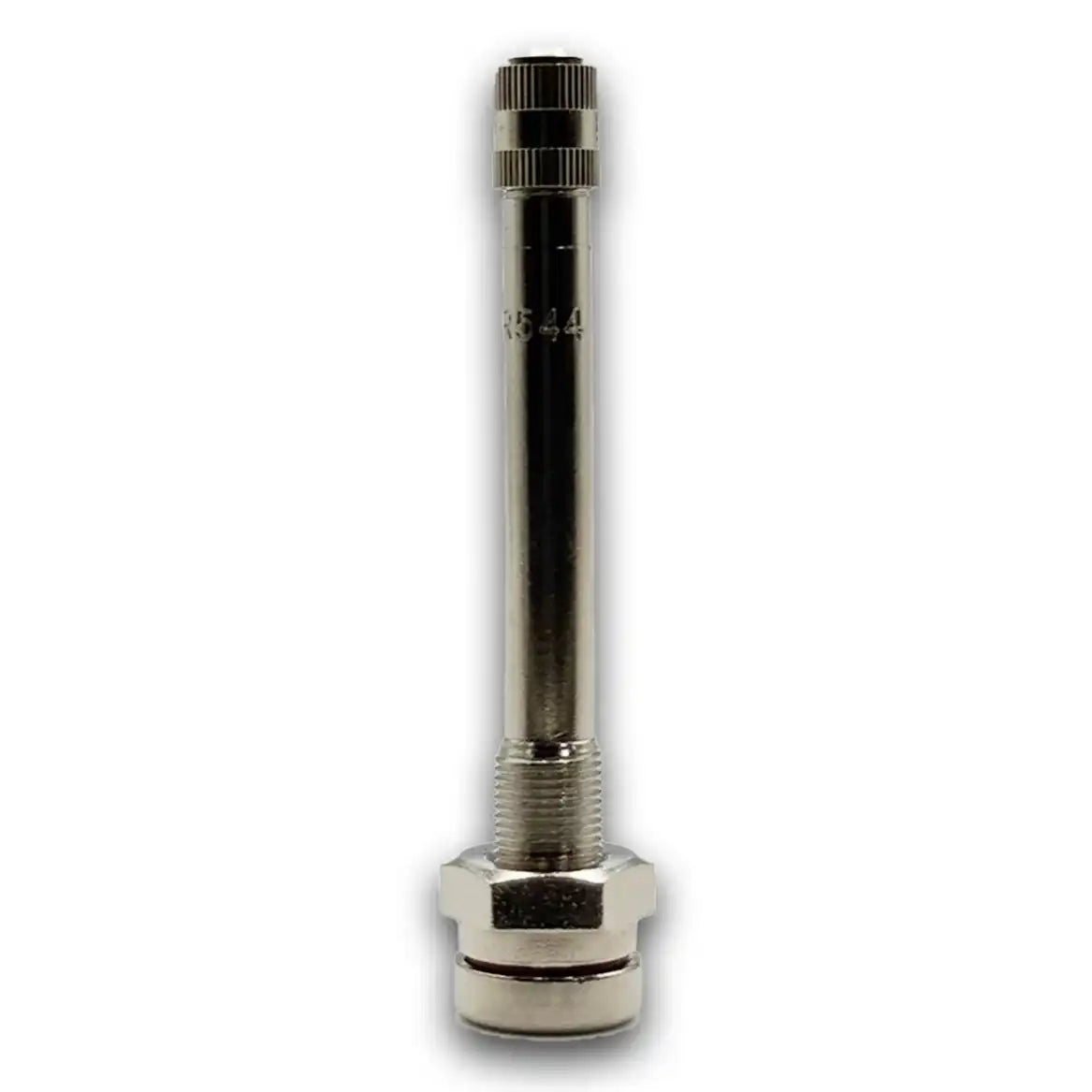

TR544 Nickel O-Ring Clamp-In Truck Valve Stem 2.9" Straight - 1 Valve
The TR544 is a 2.9" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" valve holes, it provides more length than the TR543 for deeper valve pockets.
- Height: 2.9" (2-9/10") straight for moderate-depth 0.382" hole truck wheel valve pockets.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-544, 1-503, 24240, VS-544, 17-544, VH733.
Q: What valve hole does the TR544 require?
The TR544 fits a 0.382" valve hole, found on many aluminum truck and trailer wheels from manufacturers like Alcoa and Accuride.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment applications.
Q: When would I choose the TR544 over the TR543?
At 2.9", the TR544 is longer than the TR543 at 2.4". Choose the TR544 when the valve pocket on your 0.382" hole wheel is slightly deeper and needs more stem length.
Q: Is there a bent version of the TR544?
Yes. The TR544D has the same 2.9" length with a 60deg. bend for offset valve pocket applications.
Q: What cross-references match the TR544?
The TR544 cross-references to TV-544, 1-503, 24240, VS-544, 17-544, and VH733.
Description
The TR544 is a 2.9" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" valve holes, it provides more length than the TR543 for deeper valve pockets.
- Height: 2.9" (2-9/10") straight for moderate-depth 0.382" hole truck wheel valve pockets.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-544, 1-503, 24240, VS-544, 17-544, VH733.
Q: What valve hole does the TR544 require?
The TR544 fits a 0.382" valve hole, found on many aluminum truck and trailer wheels from manufacturers like Alcoa and Accuride.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment applications.
Q: When would I choose the TR544 over the TR543?
At 2.9", the TR544 is longer than the TR543 at 2.4". Choose the TR544 when the valve pocket on your 0.382" hole wheel is slightly deeper and needs more stem length.
Q: Is there a bent version of the TR544?
Yes. The TR544D has the same 2.9" length with a 60deg. bend for offset valve pocket applications.
Q: What cross-references match the TR544?
The TR544 cross-references to TV-544, 1-503, 24240, VS-544, 17-544, and VH733.
