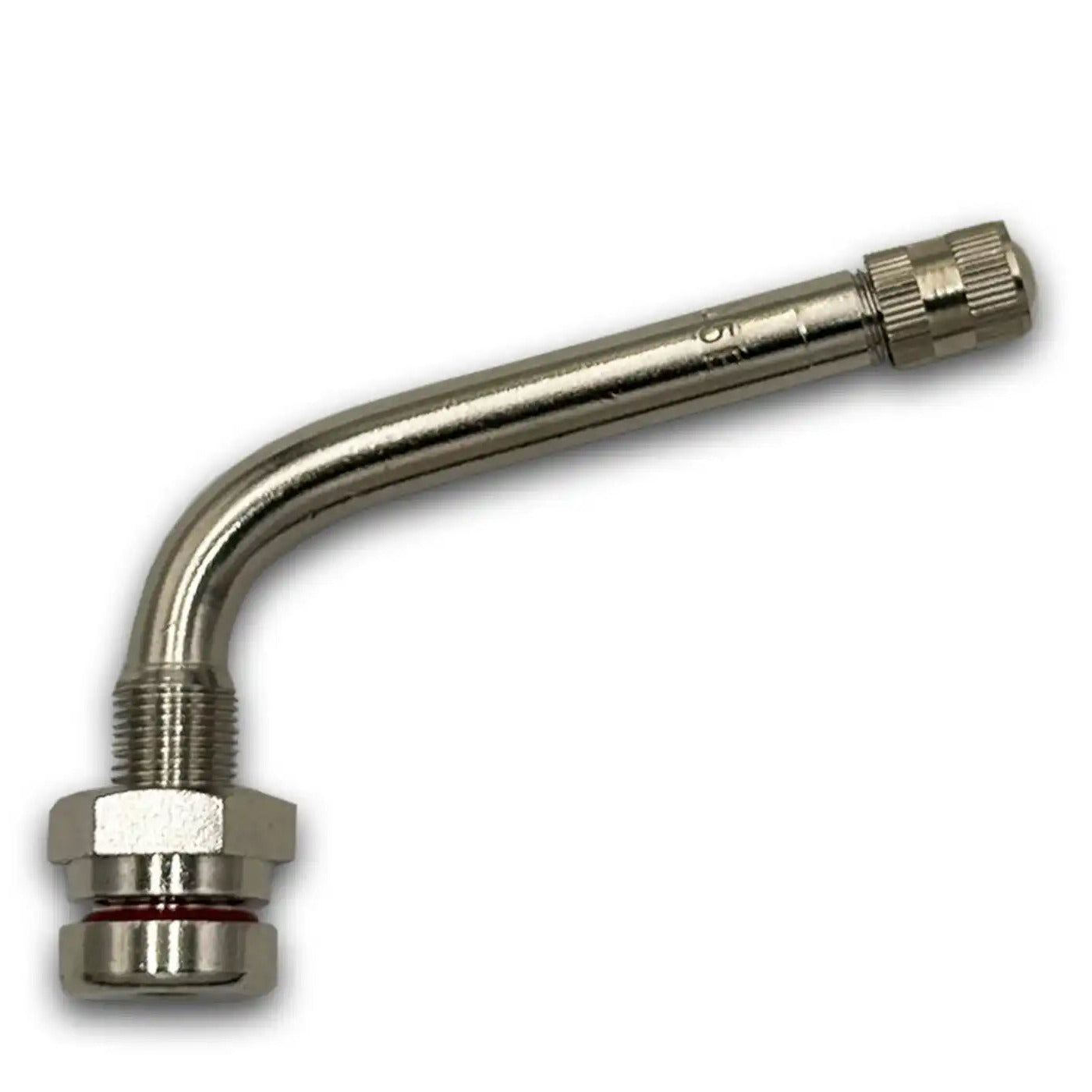

TR545E Nickel O-Ring Clamp-In Truck Valve Stem 3.5" 75deg. Bend - 1 Valve
The TR545E is a 3.5" 75deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The steep 75deg. angle combined with extended length makes it ideal for deep, sharply offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 75deg. bend for deep sharply offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545E, 1-504E, 24237, VS-545E, 17-545E, TR-545E.
Q: When should I use a 75deg. bend versus 60deg.?
Use the TR545E when the wheel design requires a nearly vertical approach to the air chuck connection. The 75deg. bend clears more severe rim structures or sidewall obstructions than the 60deg. TR545D.
Q: What valve hole does the TR545E fit?
The TR545E fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Is the TR545E the most angled 3.5" stem available?
Yes. At 75deg., the TR545E is the steepest-angled 3.5" stem in the TR54x series. For 2.4" or 4.25" versions at 75deg., see the TR543E or TR546E.
Q: What cross-references match the TR545E?
The TR545E cross-references to TV-545E, 1-504E, 24237, VS-545E, 17-545E, and TR-545E.
Description
The TR545E is a 3.5" 75deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The steep 75deg. angle combined with extended length makes it ideal for deep, sharply offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 75deg. bend for deep sharply offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-545E, 1-504E, 24237, VS-545E, 17-545E, TR-545E.
Q: When should I use a 75deg. bend versus 60deg.?
Use the TR545E when the wheel design requires a nearly vertical approach to the air chuck connection. The 75deg. bend clears more severe rim structures or sidewall obstructions than the 60deg. TR545D.
Q: What valve hole does the TR545E fit?
The TR545E fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Is the TR545E the most angled 3.5" stem available?
Yes. At 75deg., the TR545E is the steepest-angled 3.5" stem in the TR54x series. For 2.4" or 4.25" versions at 75deg., see the TR543E or TR546E.
Q: What cross-references match the TR545E?
The TR545E cross-references to TV-545E, 1-504E, 24237, VS-545E, 17-545E, and TR-545E.
