TR572-19 Brass Clamp-In Truck Valve Stem 3.75" 31deg. Bend - 1 Valve

Pack of

1 Valve
10 Valves
25 Valves

Truck Valve Details

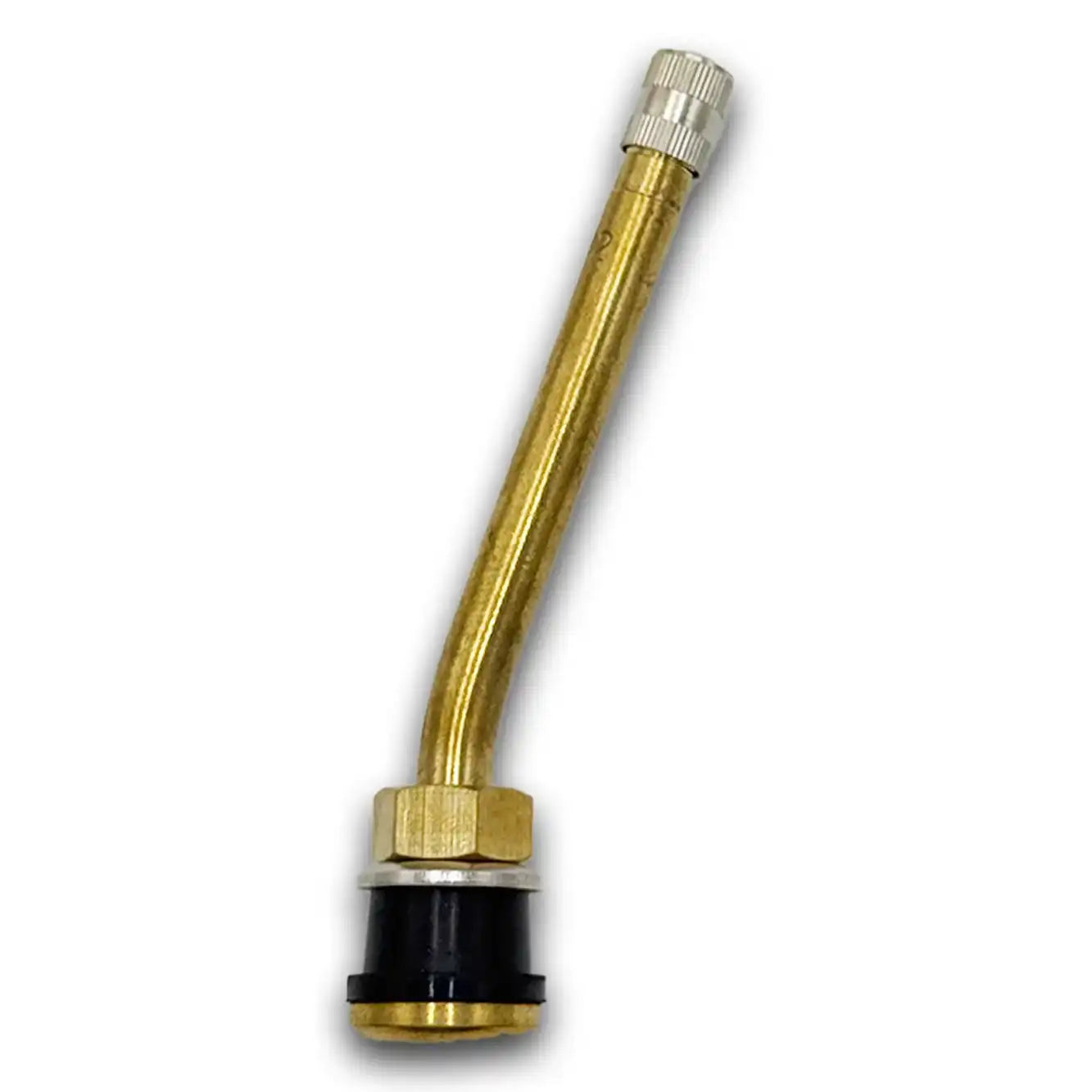

The TR572-19 is a 3.75" 31deg. bend brass clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks, trailers, and heavy equipment with 0.625" valve holes. The pronounced angle provides better access to offset valve pockets than straight or mildly-angled stems.

Height: 3.75" (3-3/4") with 31deg. bend for offset valve pocket access.
Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
Pressure Rating: 150 PSI max cold inflation pressure.
Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
Cross-Reference: TV-572-F19, VS-572-F19, 22219, TR572-F19.

Browse more Heavy-Duty Truck & Tractor Valve Stems.

Frequently Asked Questions (FAQs)

When is a 31deg. bend valve stem needed?

A 31deg. bend is used when the wheel’s valve pocket is significantly offset, making it difficult to attach a straight stem air chuck without the stem clearing surrounding clearance.

What valve hole does the TR572-19 fit?

The TR572-19 fits a 0.625" valve hole, standard on commercial truck and trailer rims.

What is the pressure rating?

Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment use.

How does the TR572-19 compare to the TR572-13?

Both are 3.75" stems but the TR572-19 has a steeper 31deg. bend vs. the TR572-13’s 13deg. Choose the TR572-19 for more aggressively angled valve pockets.

What cross-references match the TR572-19?

The TR572-19 cross-references to TV-572-F19, VS-572-F19, 22219, and TR572-F19.
