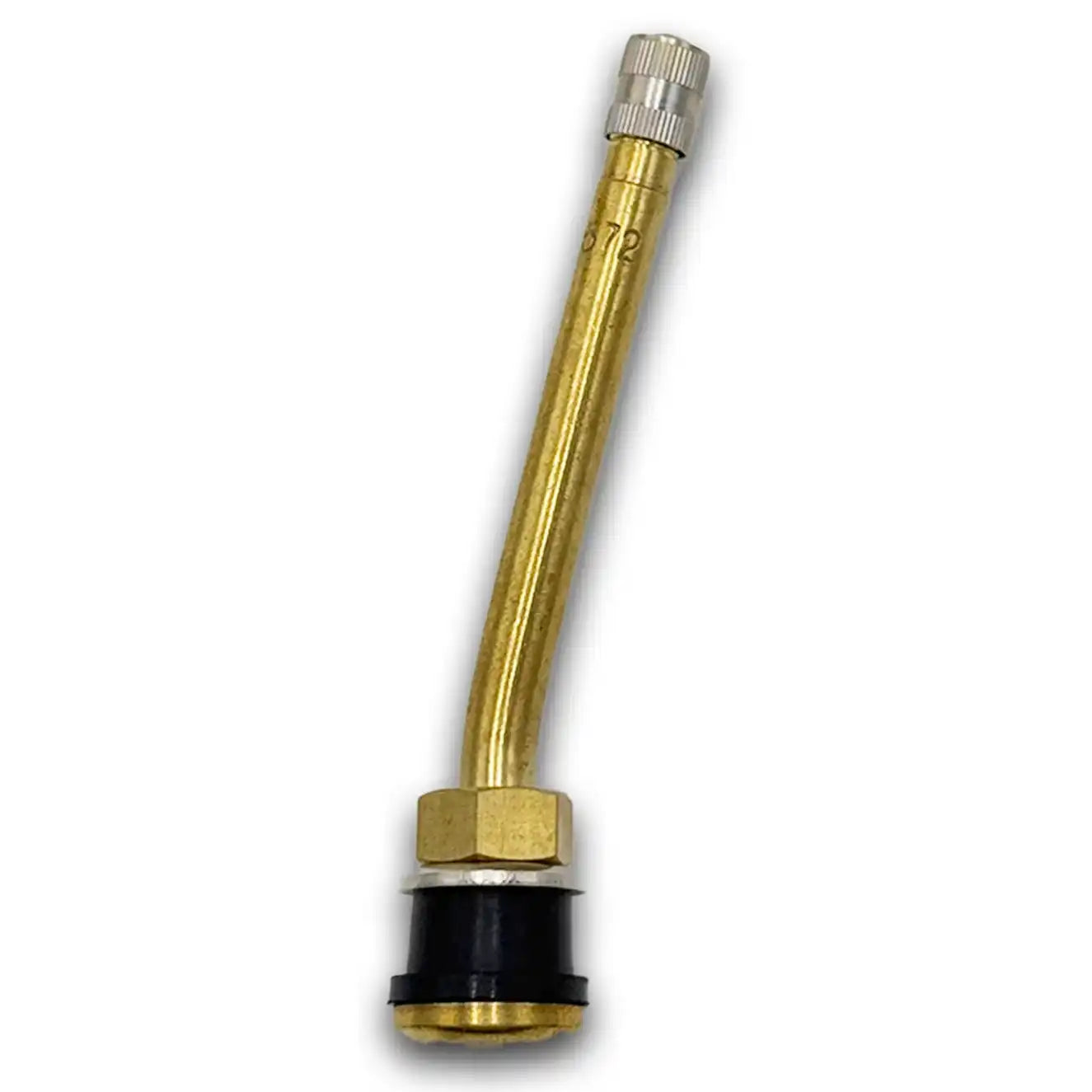

TR572-13 Brass Clamp-In Truck Valve Stem 3.75" 13deg. Bend - 1 Valve
The TR572-13 is a 3.75" 13deg. bend brass clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks, trailers, and heavy equipment with 0.625" valve holes. The slight angle makes it easier to access offset valve pockets without fully removing the tire.
- Height: 3.75" (3-3/4") with 13deg. bend for slightly offset valve pocket access.
- Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-572-F13, VS-572-F13, 24215, TR572-F13.
Q: Why would I need a 13deg. bend on a truck valve stem?
A 13deg. bend is designed for wheels where the valve pocket is slightly offset or angled, making it awkward to attach a straight stem air chuck for inflation.
Q: What valve hole does the TR572-13 fit?
The TR572-13 fits a 0.625" valve hole, standard for most commercial truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How is the TR572-13 different from the TR572-19?
The TR572-13 has a 13deg. bend (slight offset) while the TR572-19 has a 31deg. bend. Use the TR572-13 for mildly angled pockets and the TR572-19 for more pronounced offsets.
Q: What cross-references match the TR572-13?
The TR572-13 cross-references to TV-572-F13, VS-572-F13, 24215, and TR572-F13.
