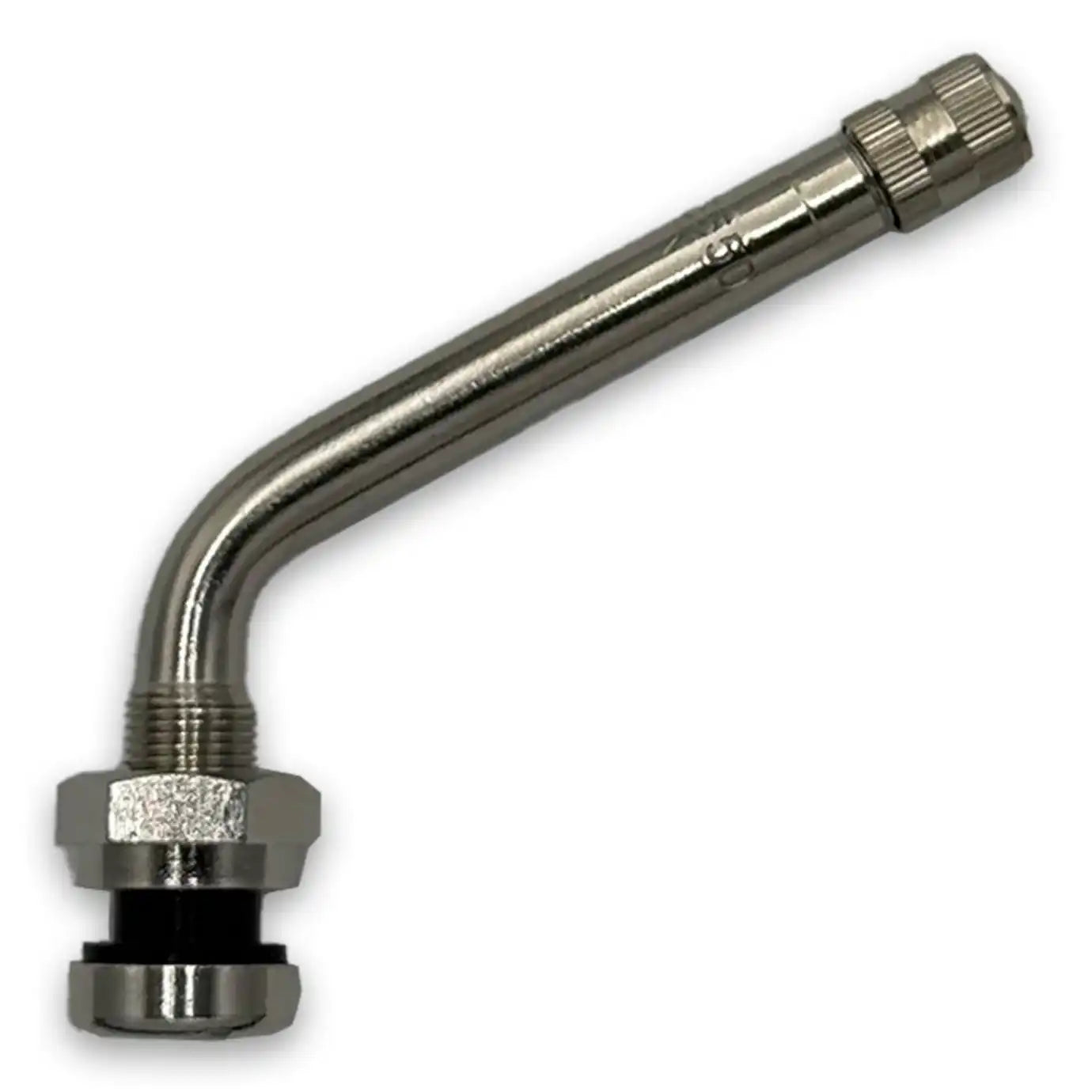

TR555D Nickel O-Ring Clamp-In Truck Valve Stem 3.5" 60deg. Bend - 1 Valve
The TR555D is a 3.5" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" holes where an extended angled stem is needed for deep, offset valve pockets.
- Height: 3.5" (3-1/2") with 60deg. bend for deep offset 0.382" hole valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-555D, 1-555D, 24510, VS-555D, 17-555D, TR-555D.
Q: What valve hole does the TR555D require?
The TR555D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR555D compare to the TR545D in the TR54x series?
Both are 3.5" 60deg. bent 0.382" O-ring stems, but they belong to different series with different cross-references. Always verify using OEM specs or a cross-reference guide.
Q: Is there a 75deg. version at 3.5" in the TR55x series?
Yes. The TR555E has the same 3.5" length with a 75deg. bend for applications requiring a steeper angle.
Q: What cross-references match the TR555D?
The TR555D cross-references to TV-555D, 1-555D, 24510, VS-555D, 17-555D, and TR-555D.
