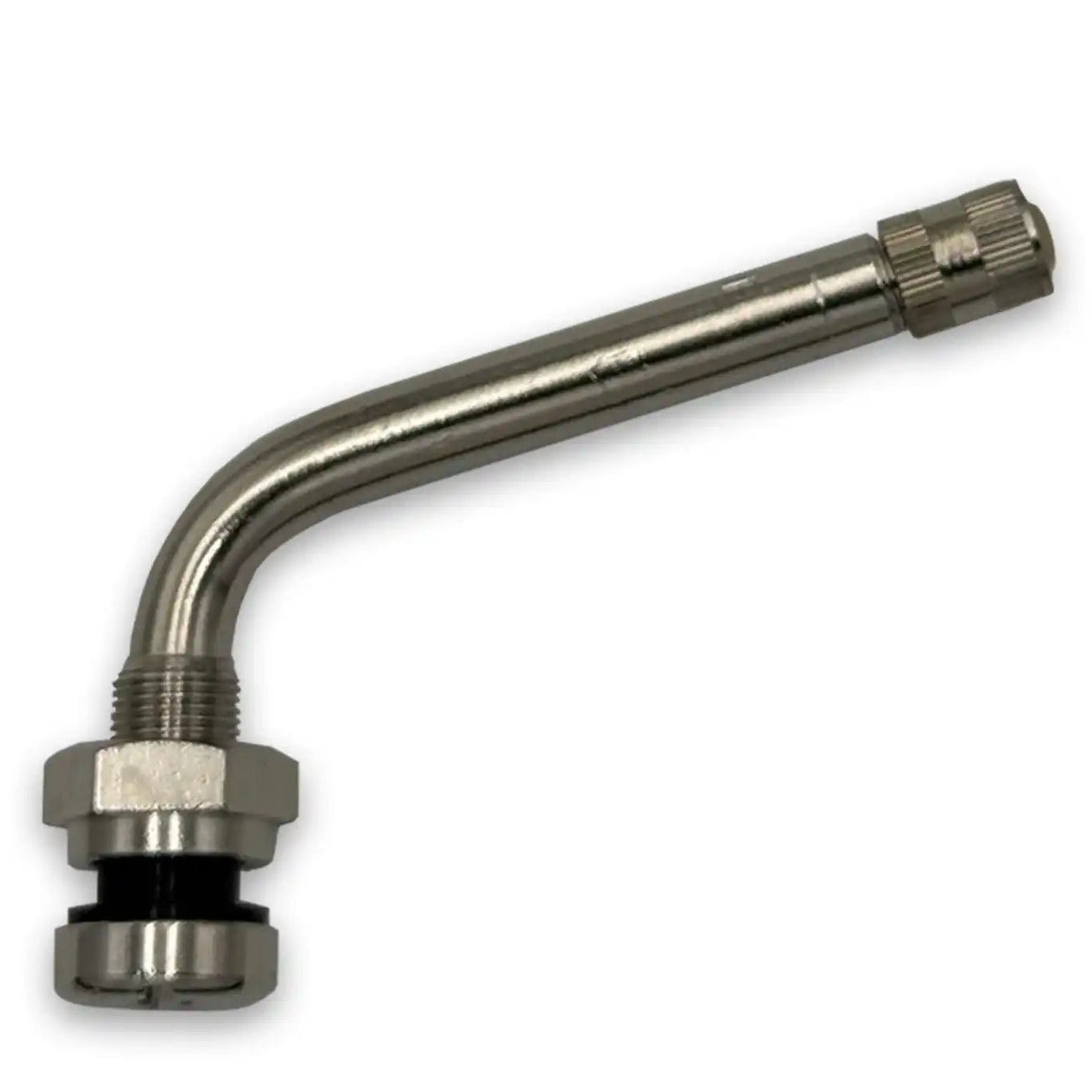

TR555E Nickel O-Ring Clamp-In Truck Valve Stem 3.5" 75deg. Bend - 1 Valve
The TR555E is a 3.5" 75deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The steep 75deg. angle combined with 3.5" length delivers access to deeply recessed, sharply offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 75deg. bend for deep sharply offset 0.382" hole valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-555E, 1-555E, 24511, VS-555E, 17-555E, TR-555E.
Q: When should I choose the TR555E over the TR555D?
Both are 3.5" 0.382" stems in the TR55x series. Choose the TR555E when a 75deg. steep angle is needed to clear the rim structure or tire sidewall during inflation — more extreme than the 60deg. TR555D.
Q: What valve hole does the TR555E fit?
The TR555E fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR555E compare to the TR545E?
Both are 3.5" 75deg. 0.382" stems from different series with different cross-references. Check OEM specs or a cross-reference guide to confirm which part is correct for your application.
Q: What cross-references match the TR555E?
The TR555E cross-references to TV-555E, 1-555E, 24511, VS-555E, 17-555E, and TR-555E.
Description
The TR555E is a 3.5" 75deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The steep 75deg. angle combined with 3.5" length delivers access to deeply recessed, sharply offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 3.5" (3-1/2") with 75deg. bend for deep sharply offset 0.382" hole valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-555E, 1-555E, 24511, VS-555E, 17-555E, TR-555E.
Q: When should I choose the TR555E over the TR555D?
Both are 3.5" 0.382" stems in the TR55x series. Choose the TR555E when a 75deg. steep angle is needed to clear the rim structure or tire sidewall during inflation — more extreme than the 60deg. TR555D.
Q: What valve hole does the TR555E fit?
The TR555E fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR555E compare to the TR545E?
Both are 3.5" 75deg. 0.382" stems from different series with different cross-references. Check OEM specs or a cross-reference guide to confirm which part is correct for your application.
Q: What cross-references match the TR555E?
The TR555E cross-references to TV-555E, 1-555E, 24511, VS-555E, 17-555E, and TR-555E.
