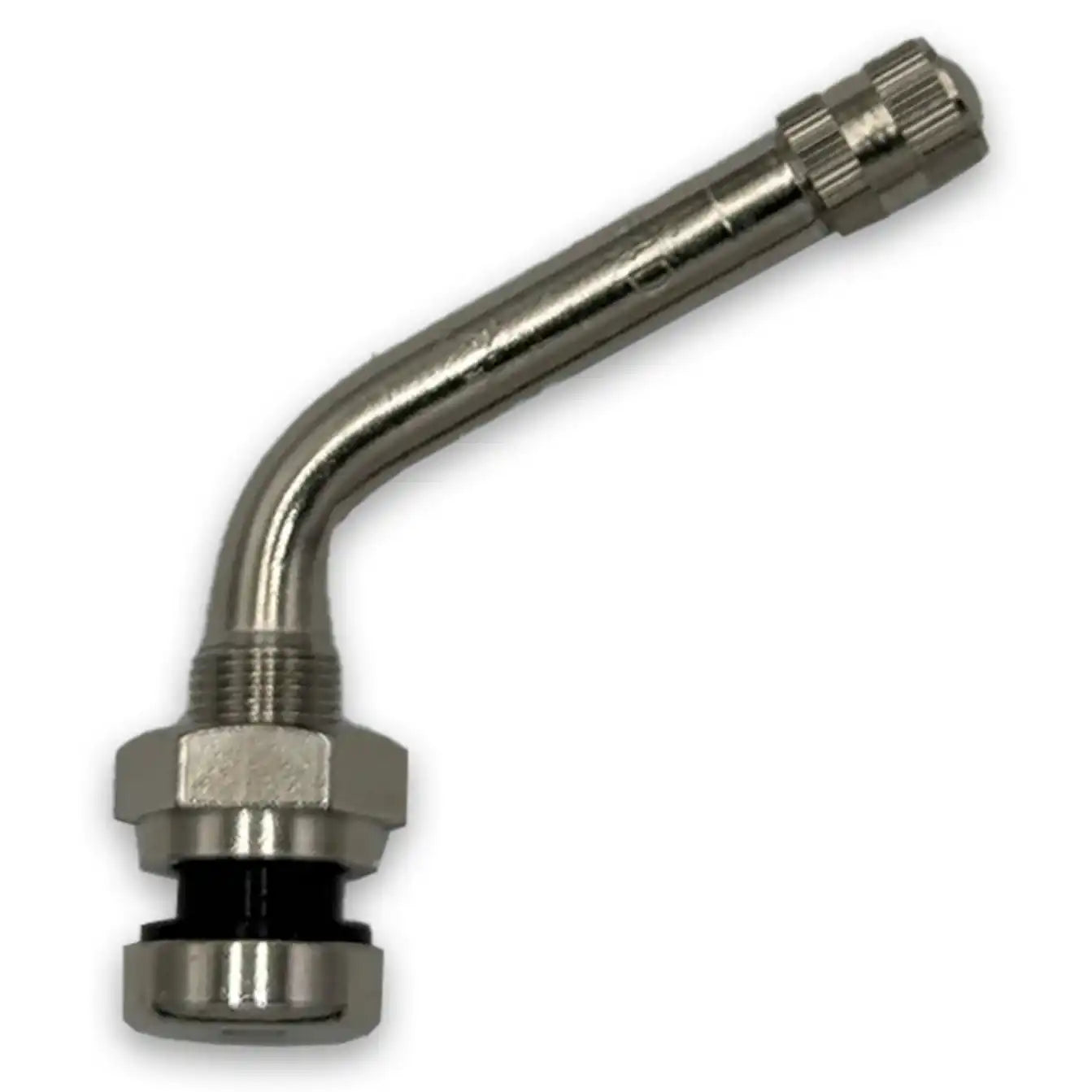

TR554D Nickel O-Ring Clamp-In Truck Valve Stem 3" 60deg. Bend - 1 Valve
The TR554D is a 3" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" holes where a mid-length angled stem is needed to access an offset valve pocket.
- Height: 3" with 60deg. bend for offset valve pocket access on aluminum truck wheels.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-554D, 1-554D, 24509, VS-554D, 17-554D, TR-554D.
Q: Why is the TR554D only available in a bent version?
The TR554D fills a specific 3" mid-length gap in the TR55x series with a 60deg. angle. There is no straight 3" TR55x equivalent — the series steps from TR553 (2.38") straight to TR555D/E (3.5") for longer options.
Q: What valve hole does the TR554D fit?
The TR554D fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR554D compare to the TR544D in the TR54x series?
The TR554D and TR544D are similar in function (both are 60deg. bent 0.382" stems) but belong to different series with different cross-references. Check your OEM spec to confirm the right part.
Q: What cross-references match the TR554D?
The TR554D cross-references to TV-554D, 1-554D, 24509, VS-554D, 17-554D, and TR-554D.
Description
The TR554D is a 3" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Designed for aluminum truck wheels with 0.382" holes where a mid-length angled stem is needed to access an offset valve pocket.
- Height: 3" with 60deg. bend for offset valve pocket access on aluminum truck wheels.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-554D, 1-554D, 24509, VS-554D, 17-554D, TR-554D.
Q: Why is the TR554D only available in a bent version?
The TR554D fills a specific 3" mid-length gap in the TR55x series with a 60deg. angle. There is no straight 3" TR55x equivalent — the series steps from TR553 (2.38") straight to TR555D/E (3.5") for longer options.
Q: What valve hole does the TR554D fit?
The TR554D fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR554D compare to the TR544D in the TR54x series?
The TR554D and TR544D are similar in function (both are 60deg. bent 0.382" stems) but belong to different series with different cross-references. Check your OEM spec to confirm the right part.
Q: What cross-references match the TR554D?
The TR554D cross-references to TV-554D, 1-554D, 24509, VS-554D, 17-554D, and TR-554D.
