TR553 Nickel O-Ring Clamp-In Truck Valve Stem 2.38" Straight - 1 Valve

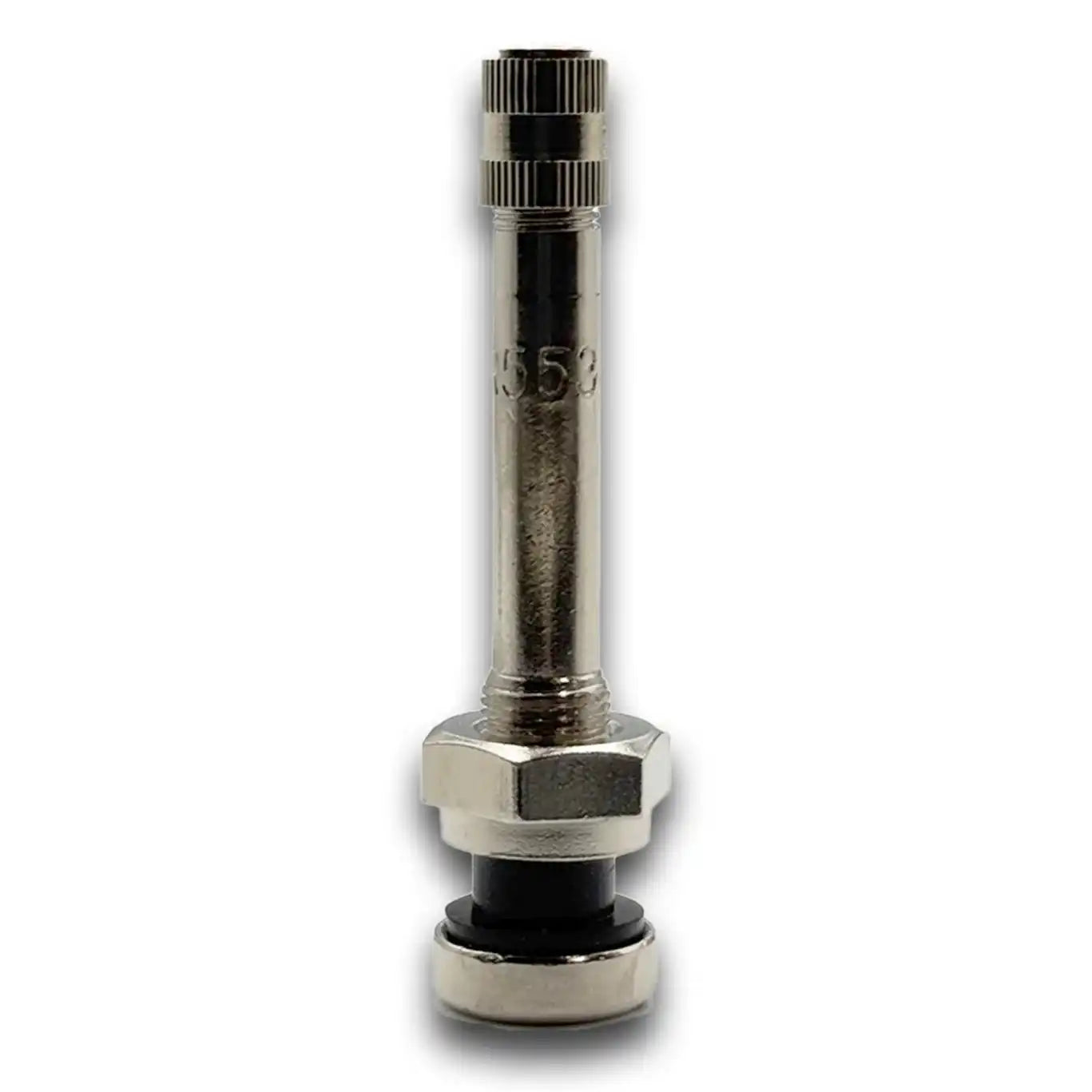

The TR553 is a 2.38" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Part of the TR55x series for aluminum truck wheels with 0.382" holes, it provides a standard-length option with different specifications from the TR543 for specific OEM applications.
- Height: 2.38" (2-3/8") straight for standard 0.382" hole truck wheel valve pockets.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-553, 1-553, 24506, VS-553, 17-553V, TR-553.
Q: What valve hole does the TR553 require?
The TR553 fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: How does the TR553 differ from the TR543?
Both are short straight 0.382" O-ring stems. The TR553 is 2.38" while the TR543 is 2.4" — a very slight difference in length. They also have different cross-references. Use your OEM spec or cross-reference guide to confirm the right part.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Are there bent versions in the TR55x series?
The TR554D, TR555D, and TR555E offer 60deg. and 75deg. bent options in the TR55x series at longer lengths. The TR553 is the straight option at 2.38".
Q: What cross-references match the TR553?
The TR553 cross-references to TV-553, 1-553, 24506, VS-553, 17-553V, and TR-553.
Description
The TR553 is a 2.38" straight nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Part of the TR55x series for aluminum truck wheels with 0.382" holes, it provides a standard-length option with different specifications from the TR543 for specific OEM applications.
- Height: 2.38" (2-3/8") straight for standard 0.382" hole truck wheel valve pockets.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-553, 1-553, 24506, VS-553, 17-553V, TR-553.
Q: What valve hole does the TR553 require?
The TR553 fits a 0.382" valve hole, standard on many aluminum truck and trailer rims.
Q: How does the TR553 differ from the TR543?
Both are short straight 0.382" O-ring stems. The TR553 is 2.38" while the TR543 is 2.4" — a very slight difference in length. They also have different cross-references. Use your OEM spec or cross-reference guide to confirm the right part.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Are there bent versions in the TR55x series?
The TR554D, TR555D, and TR555E offer 60deg. and 75deg. bent options in the TR55x series at longer lengths. The TR553 is the straight option at 2.38".
Q: What cross-references match the TR553?
The TR553 cross-references to TV-553, 1-553, 24506, VS-553, 17-553V, and TR-553.
