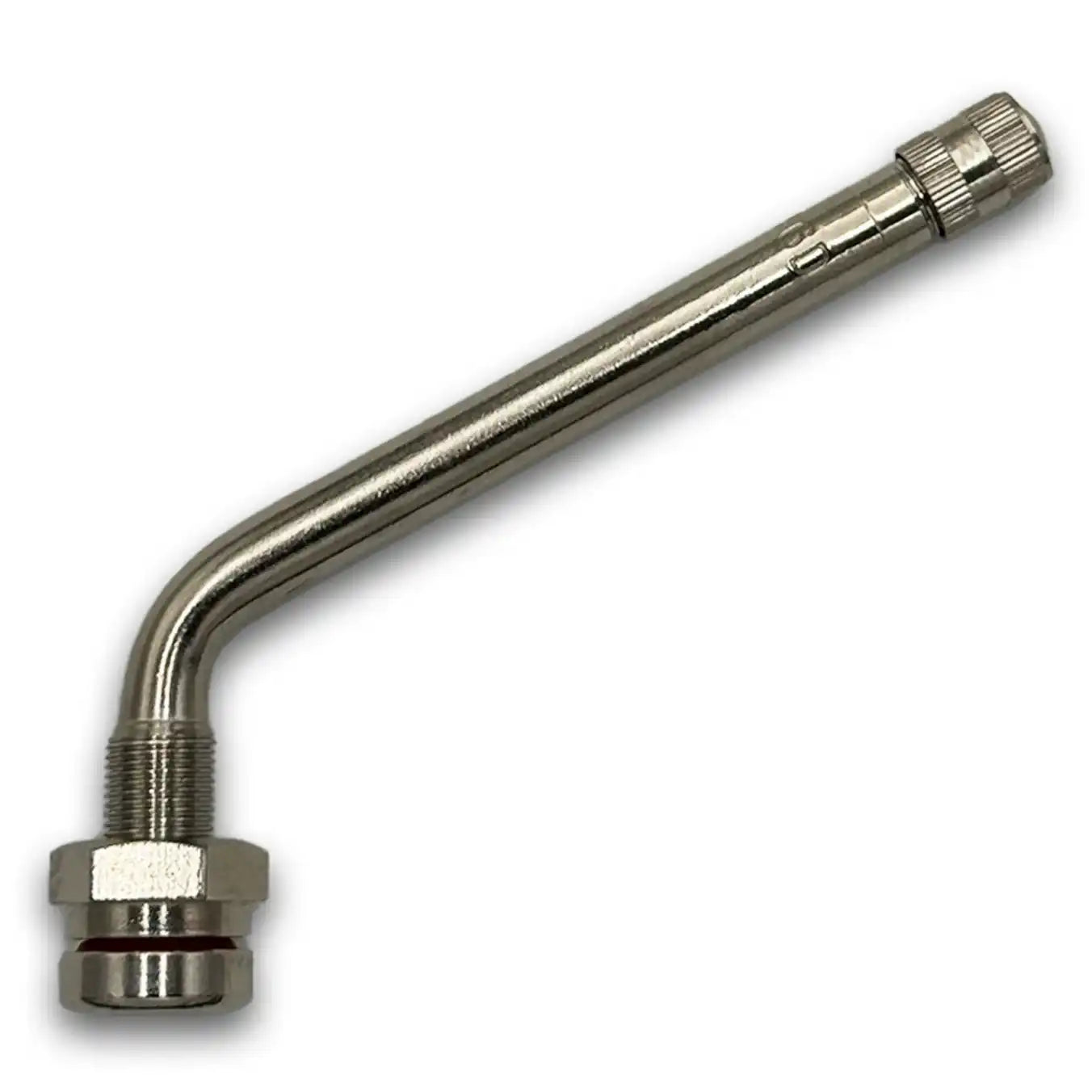

TR546D Nickel O-Ring Clamp-In Truck Valve Stem 4.25" 60deg. Bend - 1 Valve
The TR546D is a 4.25" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The combination of maximum length and 60deg. angle makes it ideal for deeply recessed, offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 4.25" (4-1/4") with 60deg. bend for deep offset 0.382" hole valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-546D, 1-505D, 24244, VS-546D, 17-546D, TR-546D.
Q: When should I use the TR546D?
Use the TR546D when the wheel requires both extra reach (4.25") and an angled approach (60deg.) to access the valve pocket comfortably with an air chuck.
Q: What valve hole does the TR546D fit?
The TR546D fits a 0.382" valve hole found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck use.
Q: How does the TR546D compare to the TR546E?
Both are 4.25" 0.382" stems. The TR546D has a 60deg. bend while the TR546E has a 75deg. bend. Choose the TR546E when a steeper angle is required.
Q: What cross-references match the TR546D?
The TR546D cross-references to TV-546D, 1-505D, 24244, VS-546D, 17-546D, and TR-546D.
Description
The TR546D is a 4.25" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. The combination of maximum length and 60deg. angle makes it ideal for deeply recessed, offset valve pockets on aluminum truck wheels with 0.382" holes.
- Height: 4.25" (4-1/4") with 60deg. bend for deep offset 0.382" hole valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-546D, 1-505D, 24244, VS-546D, 17-546D, TR-546D.
Q: When should I use the TR546D?
Use the TR546D when the wheel requires both extra reach (4.25") and an angled approach (60deg.) to access the valve pocket comfortably with an air chuck.
Q: What valve hole does the TR546D fit?
The TR546D fits a 0.382" valve hole found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck use.
Q: How does the TR546D compare to the TR546E?
Both are 4.25" 0.382" stems. The TR546D has a 60deg. bend while the TR546E has a 75deg. bend. Choose the TR546E when a steeper angle is required.
Q: What cross-references match the TR546D?
The TR546D cross-references to TV-546D, 1-505D, 24244, VS-546D, 17-546D, and TR-546D.
