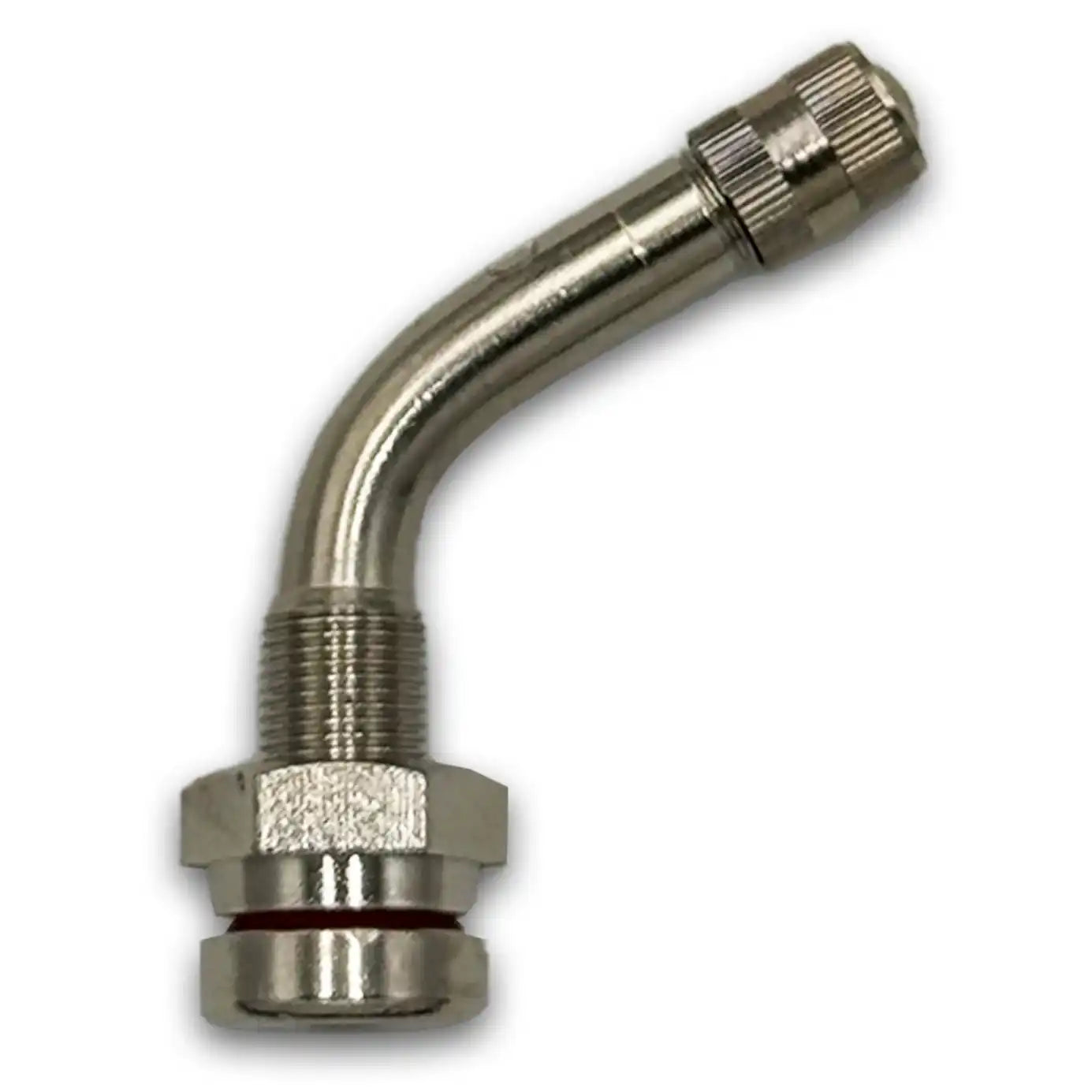

TR543D Nickel O-Ring Clamp-In Truck Valve Stem 2.4" 60deg. Bend - 1 Valve
The TR543D is a 2.4" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks with 0.382" valve holes where the angled configuration improves access to offset valve pockets on aluminum wheels.
- Height: 2.4" (2-2/5") with 60deg. bend for offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-543D, 1-502D, 24251, VS-543D, 17-543D, TR-543D.
Q: Why choose the TR543D over the straight TR543?
The 60deg. bend makes the TR543D easier to access with an air chuck when the wheel’s valve pocket is offset or the rim structure partially blocks a straight stem approach.
Q: What valve hole does the TR543D fit?
The TR543D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR543D differ from the TR543E?
Both are 2.4" 0.382" stems, but the TR543D has a 60deg. bend while the TR543E has a 75deg. bend. Use the TR543E when a steeper angle is needed to clear the valve pocket.
Q: What cross-references match the TR543D?
The TR543D cross-references to TV-543D, 1-502D, 24251, VS-543D, 17-543D, and TR-543D.
Description
The TR543D is a 2.4" 60deg. bend nickel-plated O-ring sealed clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks with 0.382" valve holes where the angled configuration improves access to offset valve pockets on aluminum wheels.
- Height: 2.4" (2-2/5") with 60deg. bend for offset valve pocket access.
- Valve Hole: 0.382" — fits aluminum truck and trailer wheels with smaller valve openings.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Seal: O-ring sealed for an airtight installation on aluminum wheels.
- Cross-Reference: TV-543D, 1-502D, 24251, VS-543D, 17-543D, TR-543D.
Q: Why choose the TR543D over the straight TR543?
The 60deg. bend makes the TR543D easier to access with an air chuck when the wheel’s valve pocket is offset or the rim structure partially blocks a straight stem approach.
Q: What valve hole does the TR543D fit?
The TR543D fits a 0.382" valve hole, found on many aluminum truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: How does the TR543D differ from the TR543E?
Both are 2.4" 0.382" stems, but the TR543D has a 60deg. bend while the TR543E has a 75deg. bend. Use the TR543E when a steeper angle is needed to clear the valve pocket.
Q: What cross-references match the TR543D?
The TR543D cross-references to TV-543D, 1-502D, 24251, VS-543D, 17-543D, and TR-543D.
