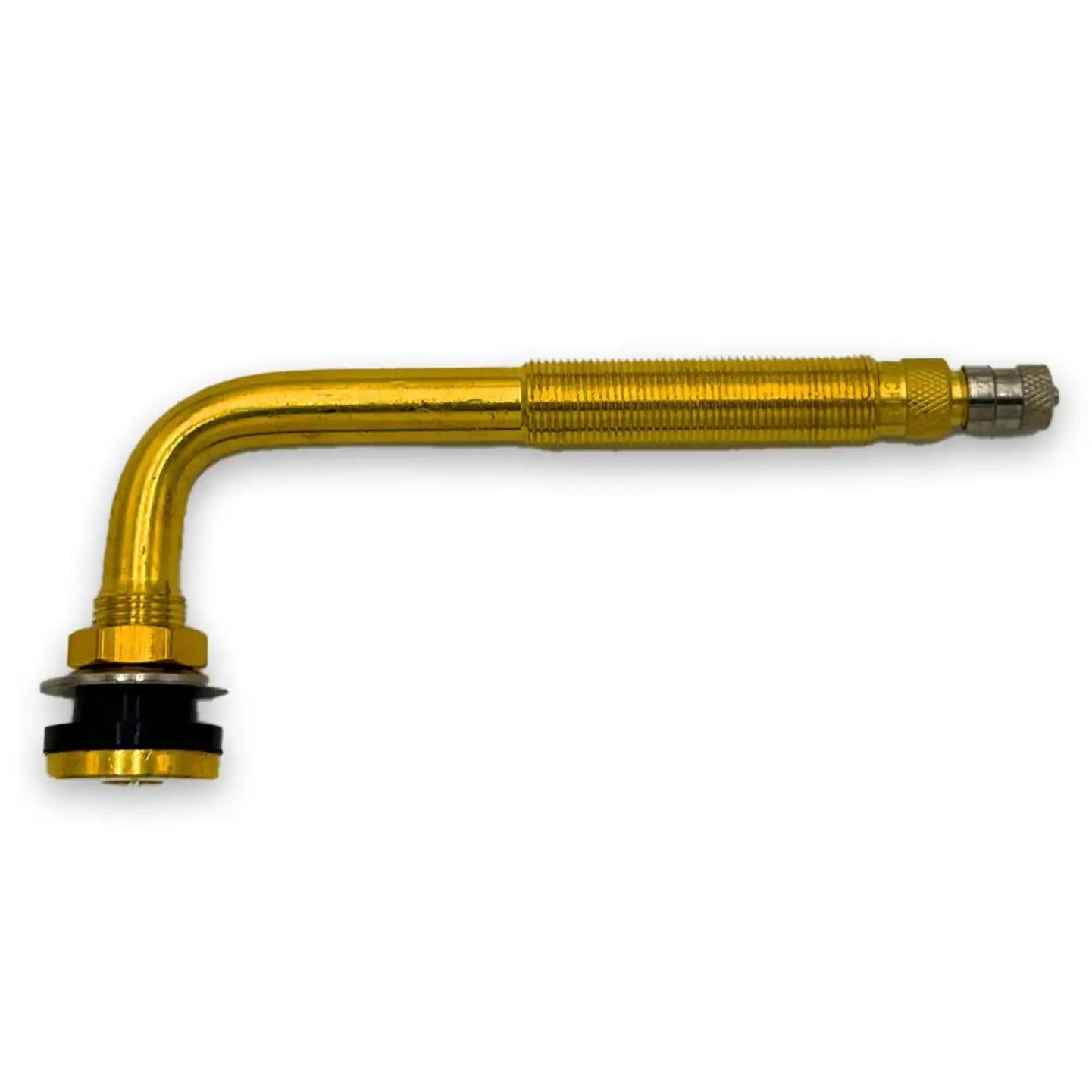

TR622A Brass Clamp-In Tractor Grader Valve Stem 6.25" 90deg. Bend - 1 Valve
The TR622A is a 6.25" 90deg. bend brass clamp-in valve stem built for tubeless tractor and grader tires. The right-angle design provides maximum sidewall clearance for large-profile agricultural tires and heavy construction equipment. Fits 0.625" valve holes.
- Height: 6.25" (6-1/4") with 90deg. bend for clearance in tight wheel spaces.
- Valve Hole: 0.625" — standard tractor and grader wheel valve opening.
- Tire Type: Tubeless — for tubeless agricultural and construction tires.
- Material: Brass body for durability in field and construction environments.
- Cross-Reference: TV-622A, 1-1252, 26149, 17-586B, TR-622A, V5-02-2.
Q: What is the difference between the TR621A and TR622A?
The TR622A is longer (6.25" vs 4.5") and features a 90deg. right-angle bend instead of 65deg. It is designed for wheels requiring more clearance or a more pronounced angle to access the valve.
Q: Why would I need a 90deg. bend valve stem?
A 90deg. bend is ideal when the tire sidewall or rim structure blocks a straight or slightly angled valve from being accessible for inflation and pressure checks.
Q: What valve hole size does the TR622A require?
The TR622A fits a 0.625" valve hole, standard for most tractor and grader rims.
Q: Can the TR622A be used for liquid ballast applications?
Yes. Its brass construction and clamp-in design are compatible with high-flow Allfast air and liquid valve systems.
Q: What are the cross-references for the TR622A?
Cross-references include TV-622A, 1-1252, 26149, 17-586B, TR-622A, and V5-02-2.
Description
The TR622A is a 6.25" 90deg. bend brass clamp-in valve stem built for tubeless tractor and grader tires. The right-angle design provides maximum sidewall clearance for large-profile agricultural tires and heavy construction equipment. Fits 0.625" valve holes.
- Height: 6.25" (6-1/4") with 90deg. bend for clearance in tight wheel spaces.
- Valve Hole: 0.625" — standard tractor and grader wheel valve opening.
- Tire Type: Tubeless — for tubeless agricultural and construction tires.
- Material: Brass body for durability in field and construction environments.
- Cross-Reference: TV-622A, 1-1252, 26149, 17-586B, TR-622A, V5-02-2.
Q: What is the difference between the TR621A and TR622A?
The TR622A is longer (6.25" vs 4.5") and features a 90deg. right-angle bend instead of 65deg. It is designed for wheels requiring more clearance or a more pronounced angle to access the valve.
Q: Why would I need a 90deg. bend valve stem?
A 90deg. bend is ideal when the tire sidewall or rim structure blocks a straight or slightly angled valve from being accessible for inflation and pressure checks.
Q: What valve hole size does the TR622A require?
The TR622A fits a 0.625" valve hole, standard for most tractor and grader rims.
Q: Can the TR622A be used for liquid ballast applications?
Yes. Its brass construction and clamp-in design are compatible with high-flow Allfast air and liquid valve systems.
Q: What are the cross-references for the TR622A?
Cross-references include TV-622A, 1-1252, 26149, 17-586B, TR-622A, and V5-02-2.
