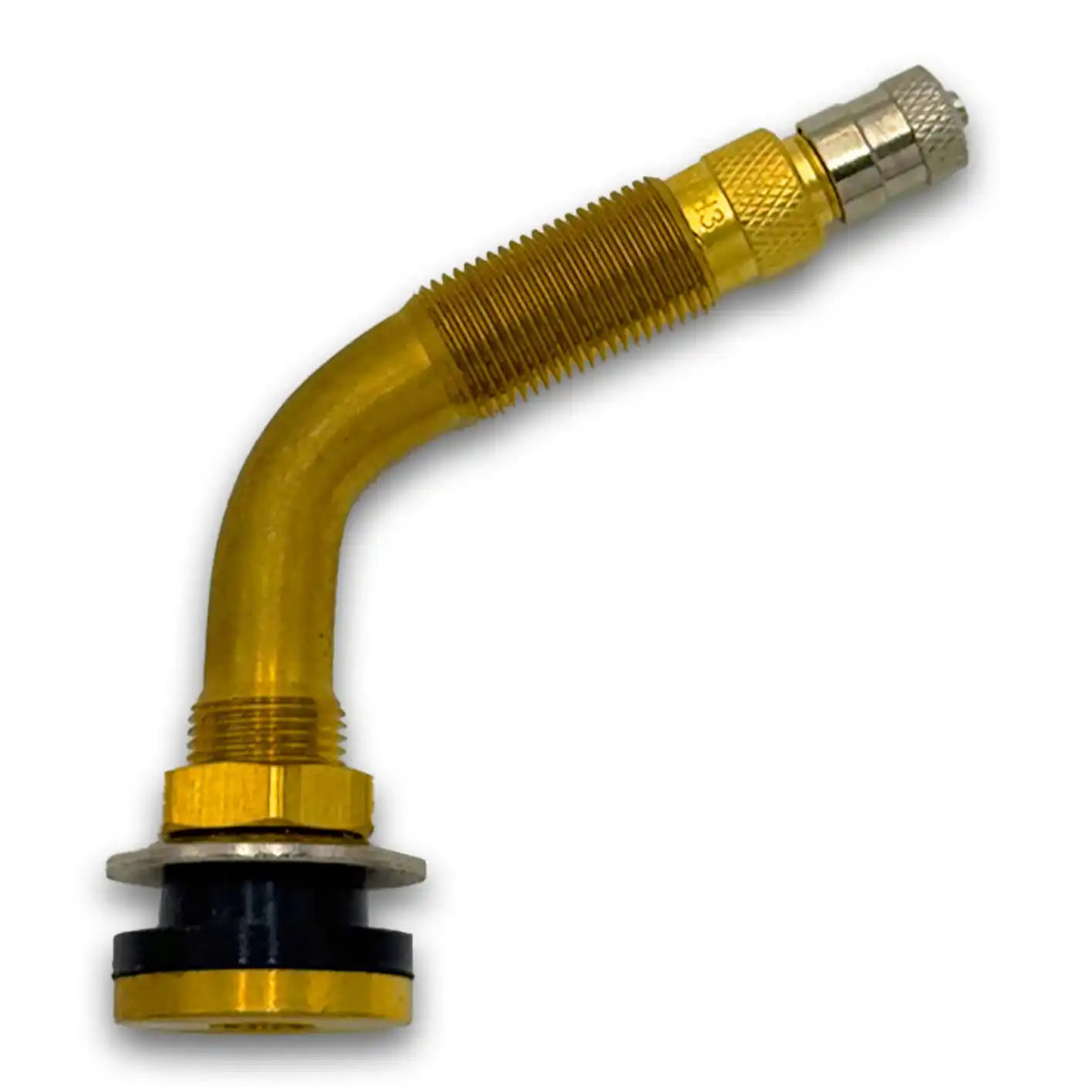

TR621A Brass Clamp-In Tractor Grader Valve Stem 4.5" 65deg. Bend - 1 Valve
The TR621A is a 4.5" 65deg. bend brass clamp-in valve stem for tubeless tractor and grader tires. The angled design is engineered for wheels with offset valve pockets, making inflation and pressure checks accessible without removing the tire. Fits 0.625" valve holes.
- Height: 4.5" (4-1/2") with 65deg. bend for offset valve pocket access.
- Valve Hole: 0.625" — standard tractor and grader wheel valve opening.
- Tire Type: Tubeless — for tubeless agricultural and construction tires.
- Material: Brass body for corrosion resistance in outdoor environments.
- Cross-Reference: TV-621A, 1-1251, 26148, 17-586A, TR-621A, V5-02-1.
Q: Why does the TR621A have a 65deg. bend?
The 65deg. bend is designed to reach valve holes that are recessed or offset in the wheel, making it easier to connect an air chuck for inflation or pressure checks.
Q: What is the total height of the TR621A?
The TR621A is 4.5" (4-1/2") from the base to the tip, with a 65deg. bend in the stem.
Q: What valve hole size does the TR621A need?
The TR621A requires a 0.625" valve hole, standard for tractor and grader rims.
Q: Is the TR621A rated for liquid ballast use?
Yes. The brass clamp-in construction supports Allfast high-flow air and liquid valve applications common in agricultural equipment.
Q: What are the cross-references for the TR621A?
Cross-references include TV-621A, 1-1251, 26148, 17-586A, TR-621A, and V5-02-1.
