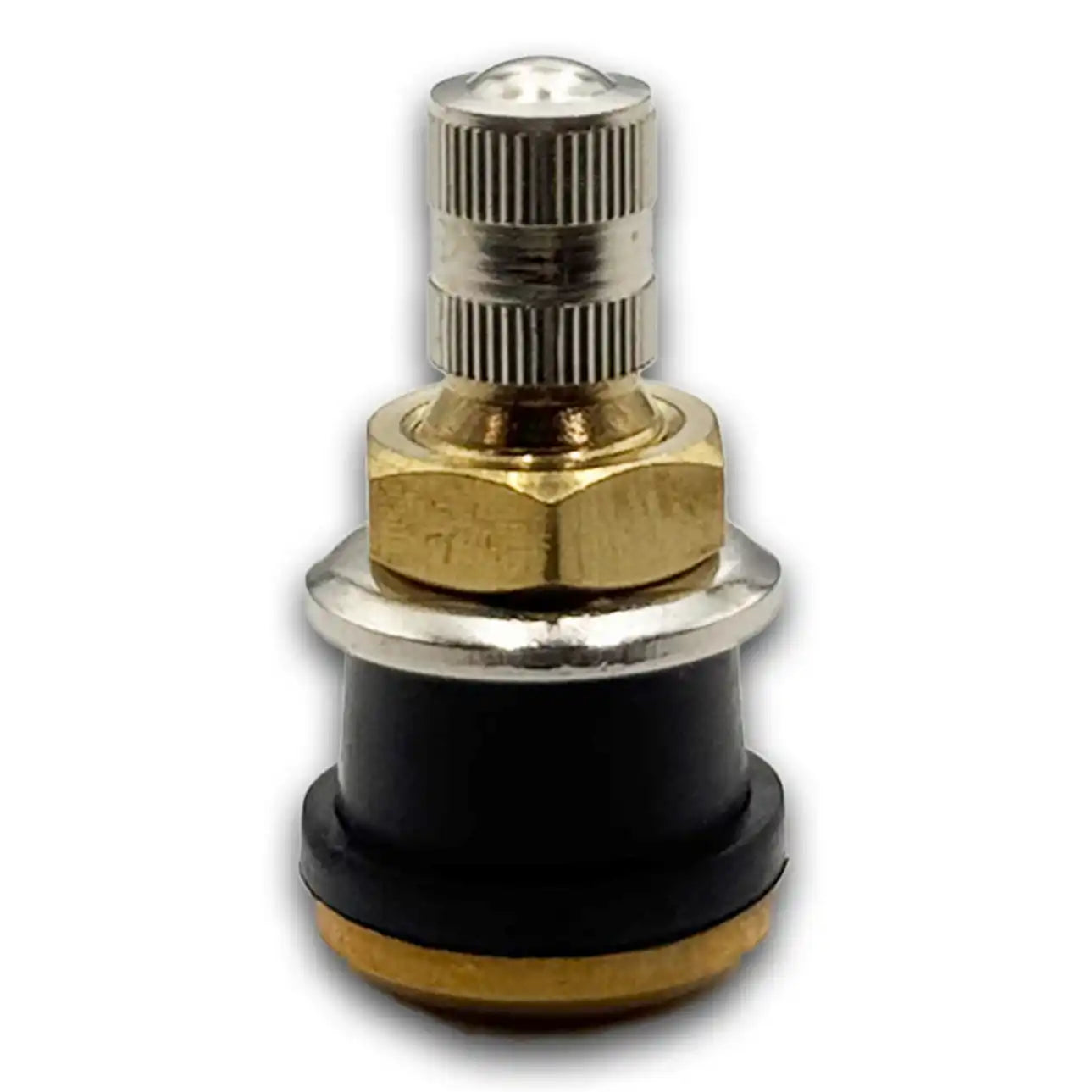

TR575 Brass Clamp-In Truck Valve Stem 1.13" Straight - 1 Valve
The TR575 is a 1.13" compact straight brass clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks, trailers, and heavy equipment with 0.625" valve holes where a short, low-profile stem is required. An O-ring seal ensures leak-free performance.
- Height: 1.13" (1-1/8") compact straight for shallow valve pockets on commercial truck wheels.
- Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-575, VS-903, 24109, 1-208, 17-575T, V3-21-1.
Q: What valve hole does the TR575 require?
The TR575 fits a 0.625" valve hole, standard on commercial truck, trailer, and bus rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment use.
Q: When would I use the TR575 over a longer stem?
The TR575’s 1.13" length is designed for shallow valve pockets where longer stems would protrude too far, risking damage from road debris or contact with wheel hardware.
Q: Does the O-ring help with short stems?
Yes. With a short stem, a solid base seal is critical. The O-ring ensures the valve is airtight even with minimal stem length above the rim surface.
Q: What cross-references match the TR575?
The TR575 cross-references to TV-575, VS-903, 24109, 1-208, 17-575T, and V3-21-1.
