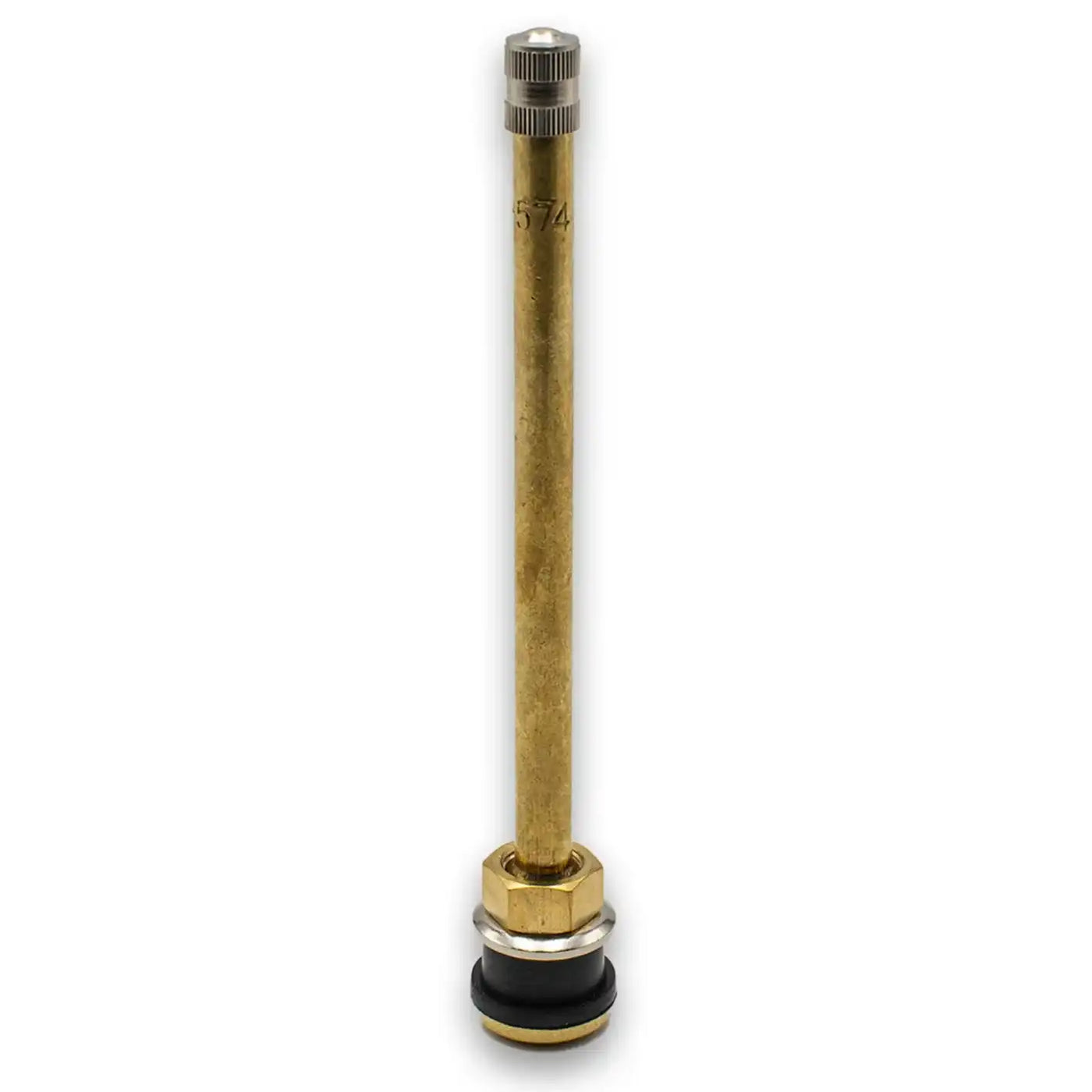

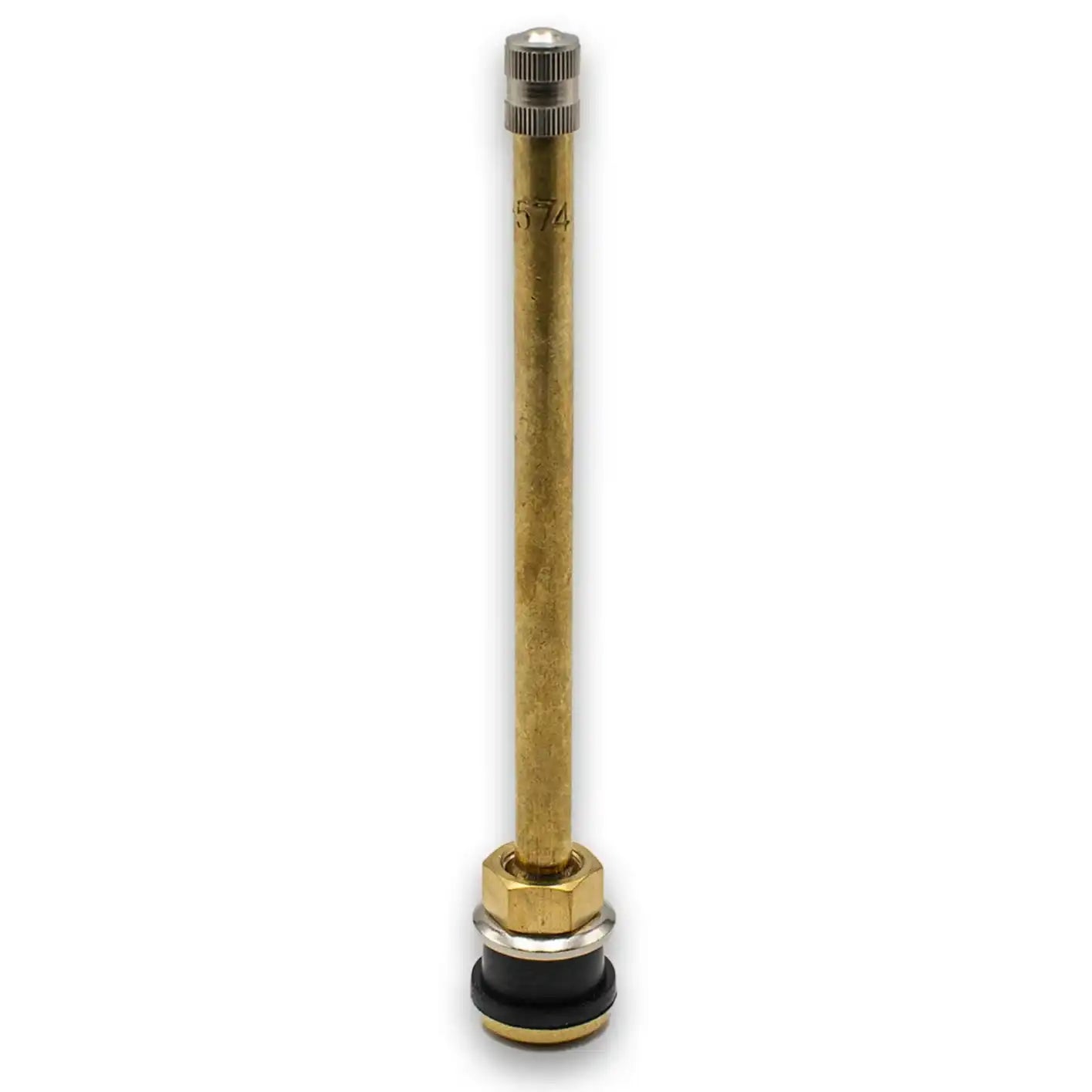

TR574 Brass Clamp-In Truck Valve Stem 5" Straight - 1 Valve
The TR574 is a 5" straight brass clamp-in truck tire valve stem rated to 150 PSI. The tallest in the standard brass series, it is built for commercial trucks, trailers, and heavy equipment with very deep valve pockets and 0.625" valve holes.
- Height: 5" straight — maximum extension for deep-pocket commercial truck wheel valve applications.
- Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-574, VS-574, 24165, 1-207, 17-574T, V3-21-8.
Q: What valve hole does the TR574 require?
The TR574 fits a 0.625" valve hole, the standard hex-base size for commercial truck, trailer, and bus rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial trucks and heavy equipment.
Q: Why would I need a 5" stem?
The TR574 is the longest standard brass truck stem available. It is used when the wheel design or cover requires maximum valve stem extension to be reachable for inflation and pressure checks.
Q: Can the TR574 be used with aluminum truck wheels?
Yes. The TR574 works on both steel and aluminum truck wheels that have a 0.625" valve hole and require a 5" straight stem.
Q: What cross-references match the TR574?
The TR574 cross-references to TV-574, VS-574, 24165, 1-207, 17-574T, and V3-21-8.
