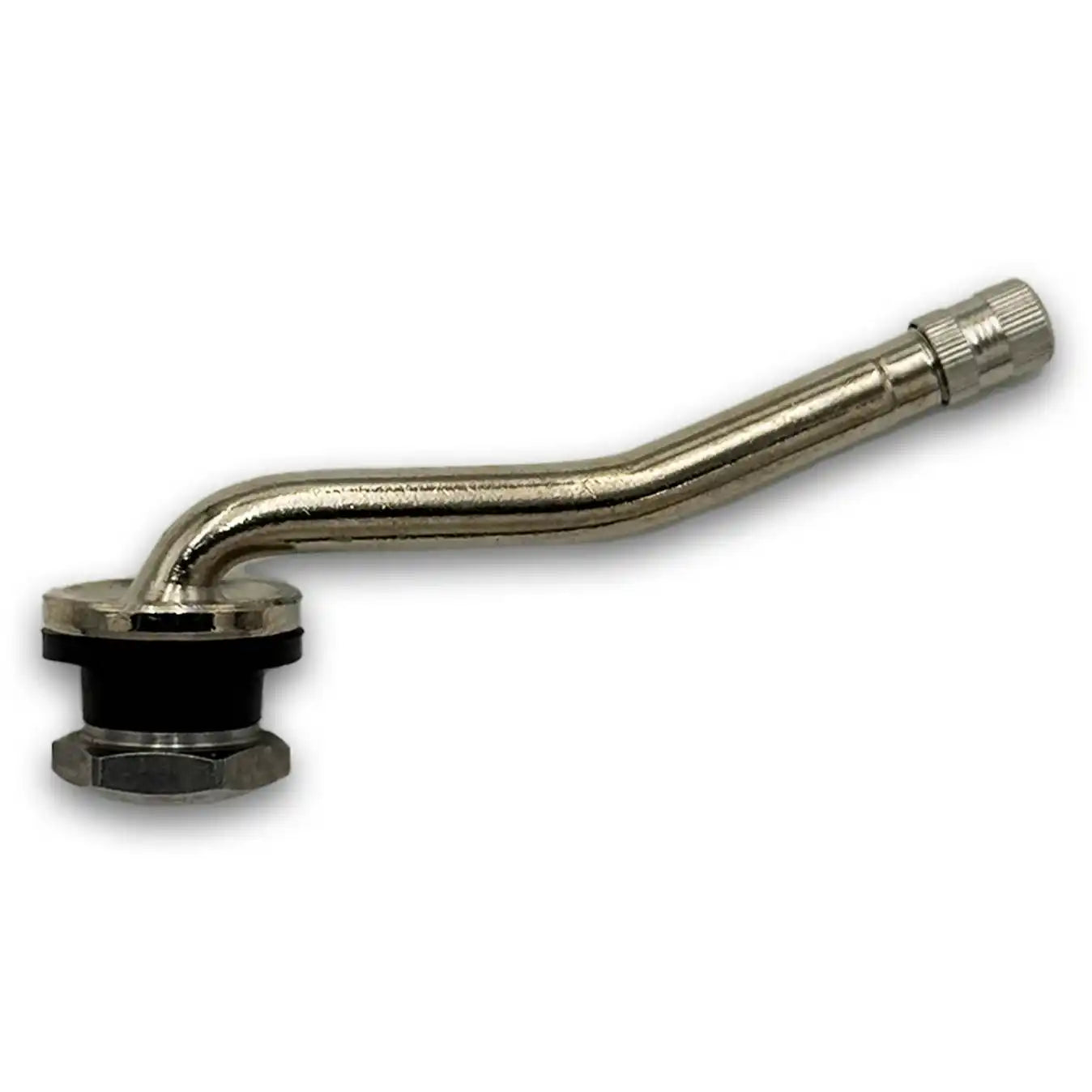

TR515 Nickel Double-Bend Clamp-In Truck Valve Stem 3.25" - 1 Valve
The TR515 is a 3.25" 90deg. and 30deg. double-bend nickel-plated clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks with 0.625" valve holes where a compound-angle stem is required to reach the valve pocket. Longer than the TR513 for applications needing more reach.
- Length: 3.25" (3-1/4") with 90deg. and 30deg. double bend for compound valve pocket access.
- Valve Hole: 0.625" — standard hex-base size for commercial truck and trailer wheels.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Nickel-plated body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-515, 7005A, 24135.
Q: What is the advantage of the TR515’s double bend?
The 90deg. and 30deg. double bend allows the TR515 to navigate compound-angle valve pockets found on certain truck wheel designs, providing access where neither a straight nor single-bend stem would fit.
Q: What valve hole does the TR515 fit?
The TR515 fits a 0.625" valve hole, standard on commercial truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment use.
Q: How does the TR515 compare to the TR513?
Both have the same 90deg. and 30deg. double-bend configuration, but the TR515 is 3.25" versus 2.63" for the TR513. Choose the TR515 when more stem extension is needed.
Q: What cross-references match the TR515?
The TR515 cross-references to TV-515, 7005A, and 24135.
Description
The TR515 is a 3.25" 90deg. and 30deg. double-bend nickel-plated clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks with 0.625" valve holes where a compound-angle stem is required to reach the valve pocket. Longer than the TR513 for applications needing more reach.
- Length: 3.25" (3-1/4") with 90deg. and 30deg. double bend for compound valve pocket access.
- Valve Hole: 0.625" — standard hex-base size for commercial truck and trailer wheels.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Nickel-plated body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-515, 7005A, 24135.
Q: What is the advantage of the TR515’s double bend?
The 90deg. and 30deg. double bend allows the TR515 to navigate compound-angle valve pockets found on certain truck wheel designs, providing access where neither a straight nor single-bend stem would fit.
Q: What valve hole does the TR515 fit?
The TR515 fits a 0.625" valve hole, standard on commercial truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck and heavy equipment use.
Q: How does the TR515 compare to the TR513?
Both have the same 90deg. and 30deg. double-bend configuration, but the TR515 is 3.25" versus 2.63" for the TR513. Choose the TR515 when more stem extension is needed.
Q: What cross-references match the TR515?
The TR515 cross-references to TV-515, 7005A, and 24135.
