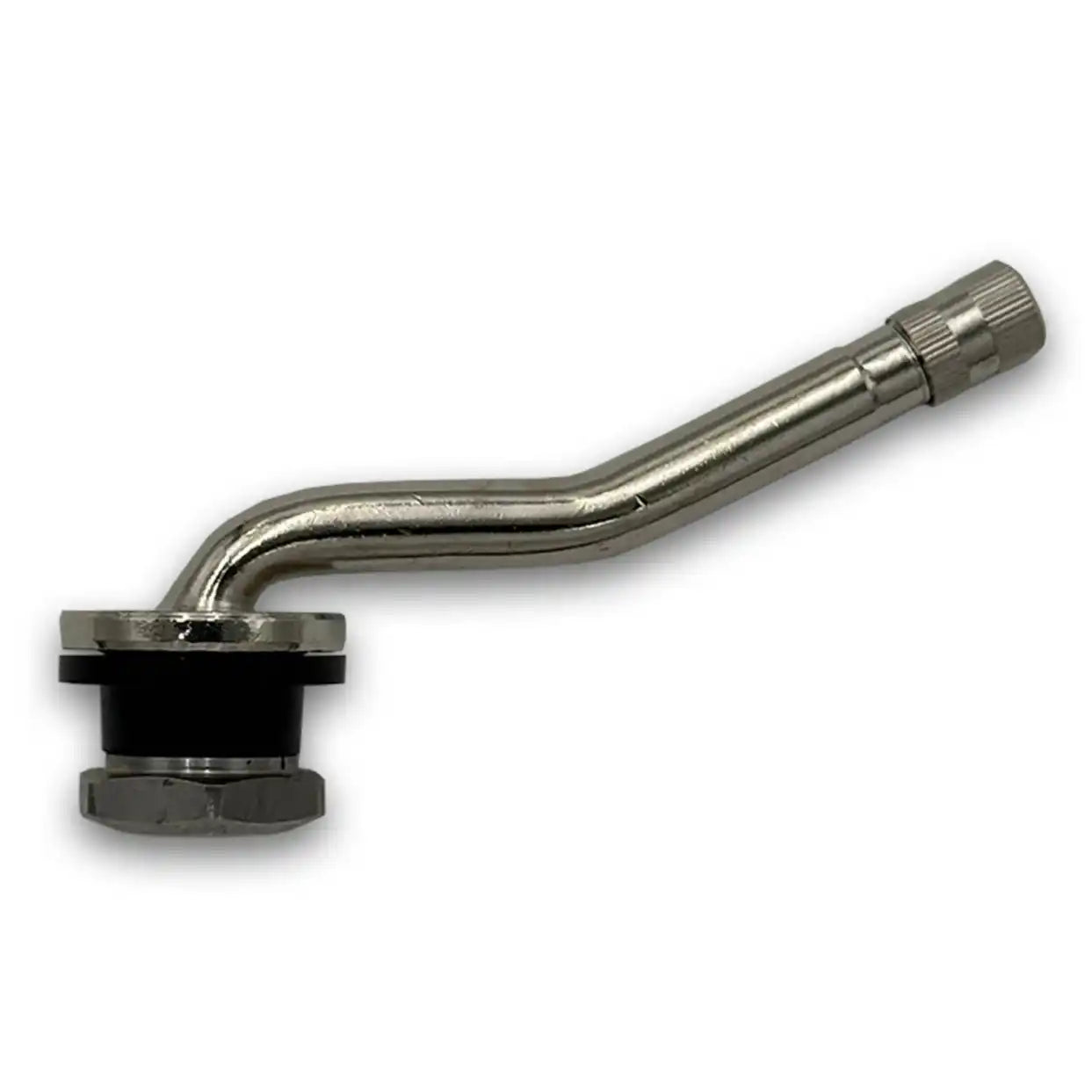

TR513 Nickel Double-Bend Clamp-In Truck Valve Stem 2.63" - 1 Valve
The TR513 is a 2.63" 90deg. and 30deg. double-bend nickel-plated clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks with 0.625" valve holes requiring a specialty compound-angle stem to navigate complex wheel pocket geometries.
- Length: 2.63" (2-5/8") with 90deg. and 30deg. double bend for compound valve pocket access.
- Valve Hole: 0.625" — standard hex-base size for commercial truck and trailer wheels.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Nickel-plated body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-513, 24136, TR-513.
Q: What is a double-bend valve stem?
A double-bend stem has two angular bends instead of one. The TR513’s 90deg. and 30deg. bends allow it to navigate compound angles in certain truck wheel designs where a single-bend stem cannot reach the air chuck properly.
Q: What valve hole does the TR513 fit?
The TR513 fits a 0.625" valve hole, standard on commercial truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck use.
Q: When is the TR513 preferred over the TR515?
The TR513 is shorter at 2.63" versus 3.25" for the TR515. Use the TR513 when clearance is tight and a shorter double-bend stem is needed.
Q: What cross-references match the TR513?
The TR513 cross-references to TV-513, 24136, and TR-513.
