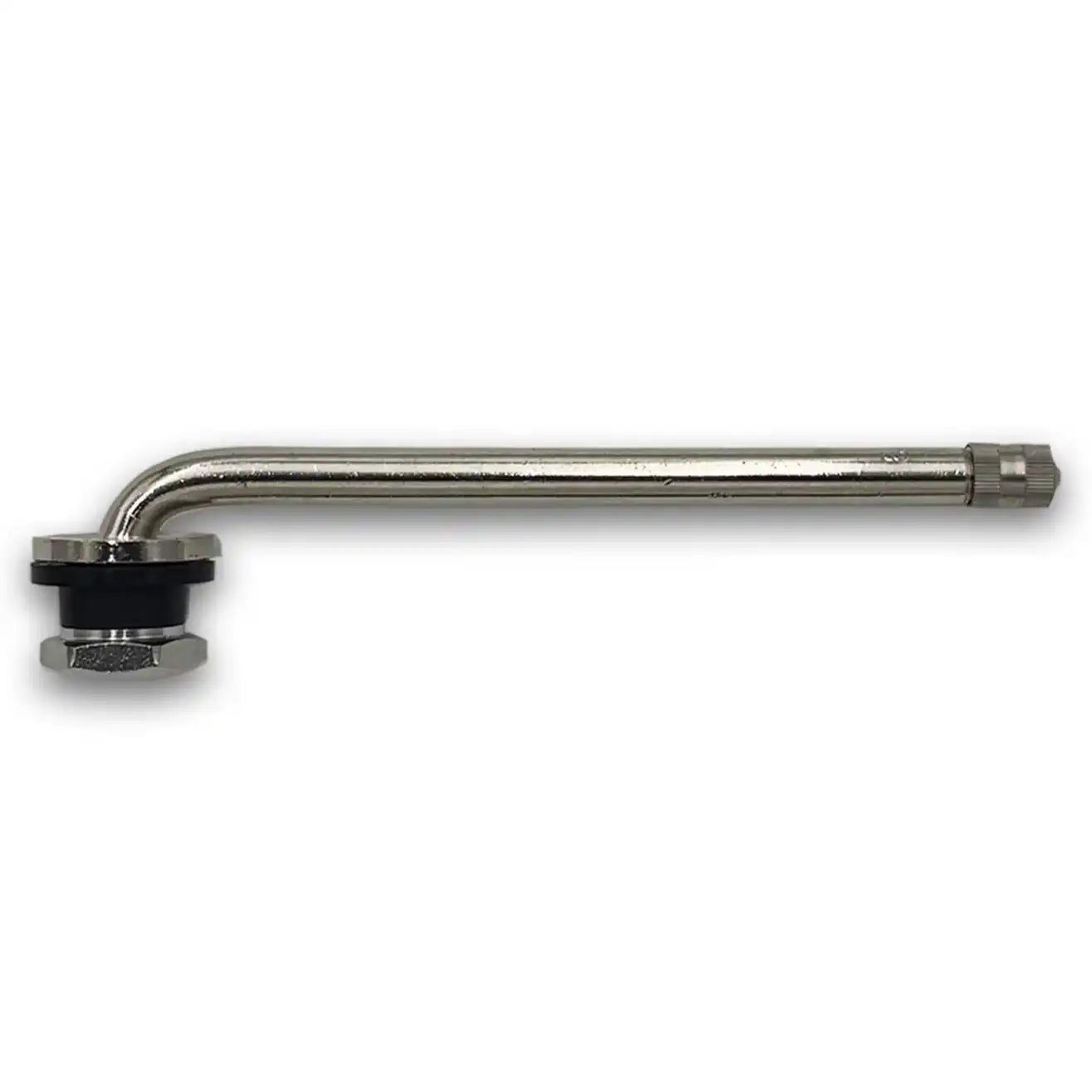

The TR509 is a 4.75" 90deg. nickel-plated clamp-in truck tire valve stem rated to 150 PSI. Designed for commercial trucks with 0.625" valve holes where a right-angle stem is needed to clear the tire sidewall or wheel structure during inflation.
- Length: 4.75" (4-3/4") with 90deg. right-angle bend for clearance on restricted truck wheel configurations.
- Valve Hole: 0.625" — standard hex-base size for commercial truck and trailer wheels.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Nickel-plated body with O-ring seal for corrosion resistance and a clean appearance on aluminum wheels.
- Cross-Reference: TV-509, VS-946R, 25418, 1-301, 17-509, VH756.
Q: Why would a truck need a 90deg. valve stem?
A 90deg. stem is required when the wheel design or installed position blocks access to a straight stem with an air chuck. Common on trucks with aftermarket wheel covers or recessed valve pockets.
Q: What valve hole does the TR509 fit?
The TR509 fits a 0.625" valve hole, the standard size for commercial truck and trailer rims.
Q: What is the pressure rating?
Rated to 150 PSI max cold inflation pressure for commercial truck applications.
Q: Why nickel plating on this stem?
Nickel plating provides a polished, corrosion-resistant finish that looks great on aluminum wheels and holds up against road chemicals and moisture.
Q: What cross-references match the TR509?
The TR509 cross-references to TV-509, VS-946R, 25418, 1-301, 17-509, and VH756.
