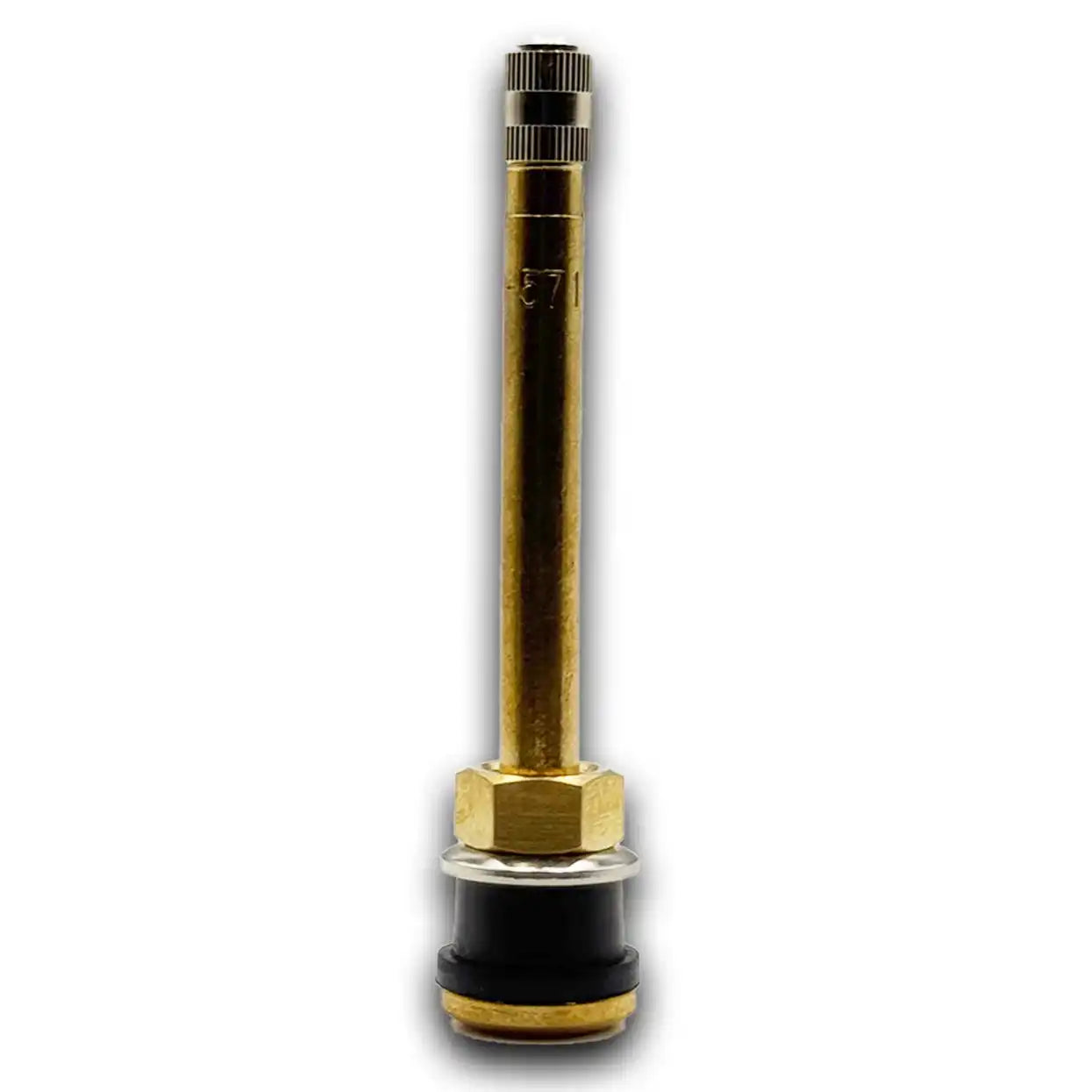

TR571 Brass Clamp-In Truck Valve Stem 3.38" Straight - 1 Valve
The TR571 is a 3.38" straight brass clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks, trailers, and heavy equipment with 0.625" valve holes. An O-ring seal delivers a reliable, leak-free installation every time.
- Height: 3.38" (3-3/8") straight for standard commercial truck wheel valve pockets.
- Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-571, VS-571, 24162, 1-204, 17-571T, V3-21-5.
Q: What valve hole does the TR571 require?
The TR571 fits a 0.625" valve hole, the standard hex-base size for commercial truck, trailer, and bus rims.
Q: What is the pressure rating for the TR571?
Rated to 150 PSI max cold inflation pressure, suitable for commercial trucks and heavy equipment.
Q: What does the O-ring seal do?
The O-ring creates an airtight secondary seal between the valve stem and the rim, preventing slow leaks that can develop over time.
Q: When would I choose the TR571 over a shorter stem?
At 3.38", the TR571 suits truck wheels where the valve pocket is recessed and a shorter stem won’t give you enough reach for an air chuck.
Q: What cross-references match the TR571?
The TR571 cross-references to TV-571, VS-571, 24162, 1-204, 17-571T, and V3-21-5.
Description
The TR571 is a 3.38" straight brass clamp-in truck tire valve stem rated to 150 PSI. Built for commercial trucks, trailers, and heavy equipment with 0.625" valve holes. An O-ring seal delivers a reliable, leak-free installation every time.
- Height: 3.38" (3-3/8") straight for standard commercial truck wheel valve pockets.
- Valve Hole: 0.625" — standard size for commercial truck, trailer, and bus rims.
- Pressure Rating: 150 PSI max cold inflation pressure.
- Material: Brass body with O-ring seal for corrosion resistance and reliable sealing.
- Cross-Reference: TV-571, VS-571, 24162, 1-204, 17-571T, V3-21-5.
Q: What valve hole does the TR571 require?
The TR571 fits a 0.625" valve hole, the standard hex-base size for commercial truck, trailer, and bus rims.
Q: What is the pressure rating for the TR571?
Rated to 150 PSI max cold inflation pressure, suitable for commercial trucks and heavy equipment.
Q: What does the O-ring seal do?
The O-ring creates an airtight secondary seal between the valve stem and the rim, preventing slow leaks that can develop over time.
Q: When would I choose the TR571 over a shorter stem?
At 3.38", the TR571 suits truck wheels where the valve pocket is recessed and a shorter stem won’t give you enough reach for an air chuck.
Q: What cross-references match the TR571?
The TR571 cross-references to TV-571, VS-571, 24162, 1-204, 17-571T, and V3-21-5.
