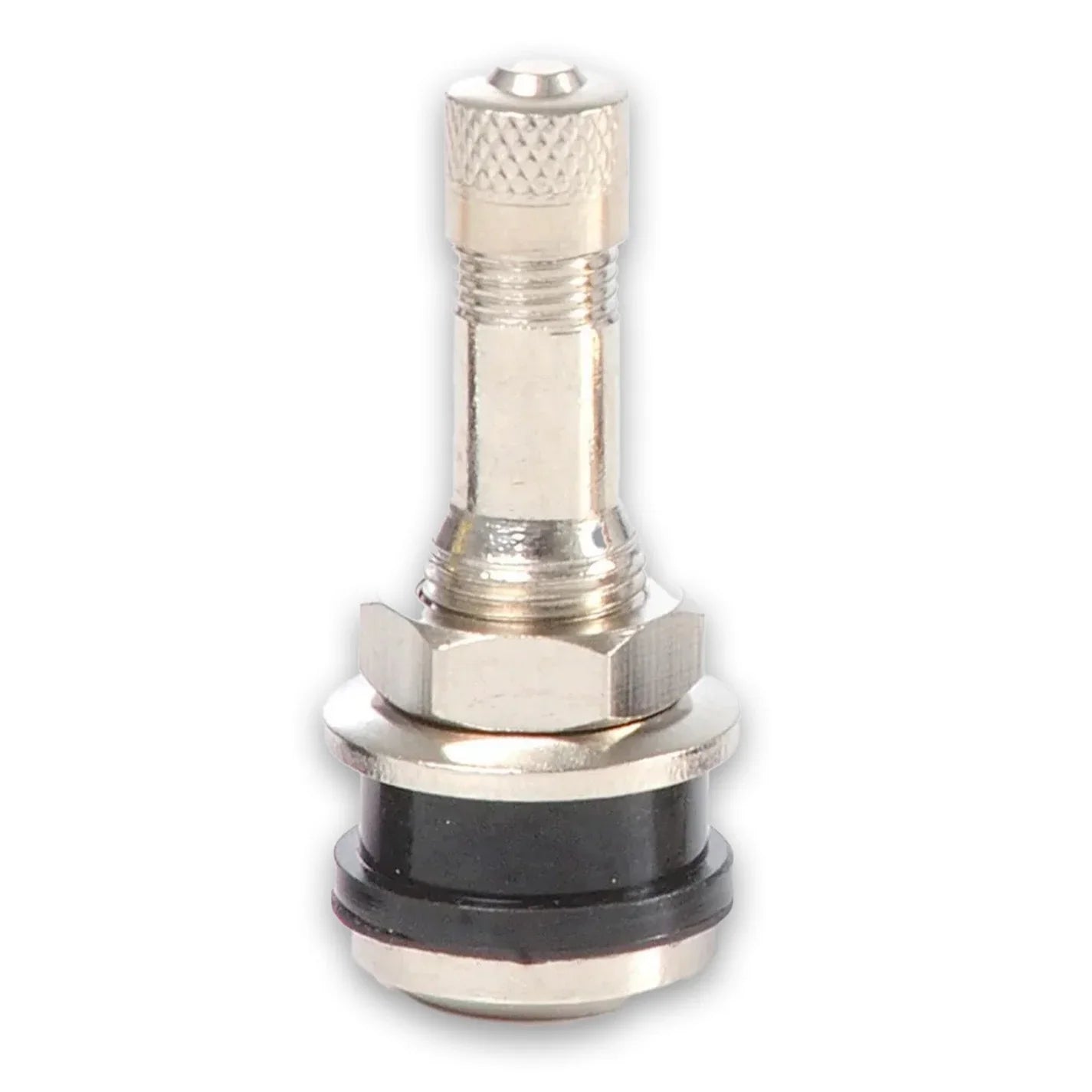

TR416 Metal Clamp-In Truck Valve Stem Outer Clamp - 25 Valves
The TR416 is a heavy-duty metal outer clamp-in truck tire valve stem rated to 180 PSI max cold pressure. Built for commercial trucks, trailers, and fleet vehicles with 0.625" valve holes, the outer clamp design secures the stem directly to the rim face for fast installation in high-volume tire service environments.
With a higher pressure rating than standard brass stems, the TR416 is a reliable choice for applications requiring extra margin, including drive axle dual tires, trailer axles, and specialty commercial wheel setups.
Specifications
- Valve Hole: 0.625" standard truck wheel
- Max Cold Pressure: 180 PSI
- Mount Type: Outer clamp
- Material: Metal body with O-ring seal
- Cross-Reference: TR416
Frequently Asked Questions
What vehicles and wheel types is the TR416 compatible with?
The TR416 is designed for commercial trucks, semi-trailers, buses, and heavy equipment wheels with a 0.625" round valve hole. It uses an outer clamp mount, compatible with both steel and aluminum wheels designed for outer clamp valve installation.
What is the difference between an outer clamp and a standard clamp-in valve?
A standard clamp-in valve is secured by a nut threaded onto the valve body from inside the wheel. An outer clamp design uses a clamp on the outside of the rim face to secure the valve, which can speed up installation in fleet environments since the wheel does not need to be fully dismounted in all cases.
What is the maximum pressure rating for the TR416?
The TR416 is rated to 180 PSI max cold pressure, which is higher than many standard brass clamp-in stems. This makes it suitable for applications with elevated tire pressure requirements.
What are the cross-reference part numbers for the TR416?
The TR416 is identified by the industry-standard part number TR416. If your wheel supplier or fleet spec sheet calls out TR416, this is the correct valve.
Can the TR416 be used on aluminum wheels?
Yes, as long as the wheel is designed for an outer clamp valve and has the correct 0.625" valve opening. If you have aluminum wheels with standard threaded clamp-in holes, see our TR500 or TR501 brass clamp-in stems instead.
Description
The TR416 is a heavy-duty metal outer clamp-in truck tire valve stem rated to 180 PSI max cold pressure. Built for commercial trucks, trailers, and fleet vehicles with 0.625" valve holes, the outer clamp design secures the stem directly to the rim face for fast installation in high-volume tire service environments.
With a higher pressure rating than standard brass stems, the TR416 is a reliable choice for applications requiring extra margin, including drive axle dual tires, trailer axles, and specialty commercial wheel setups.
Specifications
- Valve Hole: 0.625" standard truck wheel
- Max Cold Pressure: 180 PSI
- Mount Type: Outer clamp
- Material: Metal body with O-ring seal
- Cross-Reference: TR416
Frequently Asked Questions
What vehicles and wheel types is the TR416 compatible with?
The TR416 is designed for commercial trucks, semi-trailers, buses, and heavy equipment wheels with a 0.625" round valve hole. It uses an outer clamp mount, compatible with both steel and aluminum wheels designed for outer clamp valve installation.
What is the difference between an outer clamp and a standard clamp-in valve?
A standard clamp-in valve is secured by a nut threaded onto the valve body from inside the wheel. An outer clamp design uses a clamp on the outside of the rim face to secure the valve, which can speed up installation in fleet environments since the wheel does not need to be fully dismounted in all cases.
What is the maximum pressure rating for the TR416?
The TR416 is rated to 180 PSI max cold pressure, which is higher than many standard brass clamp-in stems. This makes it suitable for applications with elevated tire pressure requirements.
What are the cross-reference part numbers for the TR416?
The TR416 is identified by the industry-standard part number TR416. If your wheel supplier or fleet spec sheet calls out TR416, this is the correct valve.
Can the TR416 be used on aluminum wheels?
Yes, as long as the wheel is designed for an outer clamp valve and has the correct 0.625" valve opening. If you have aluminum wheels with standard threaded clamp-in holes, see our TR500 or TR501 brass clamp-in stems instead.
