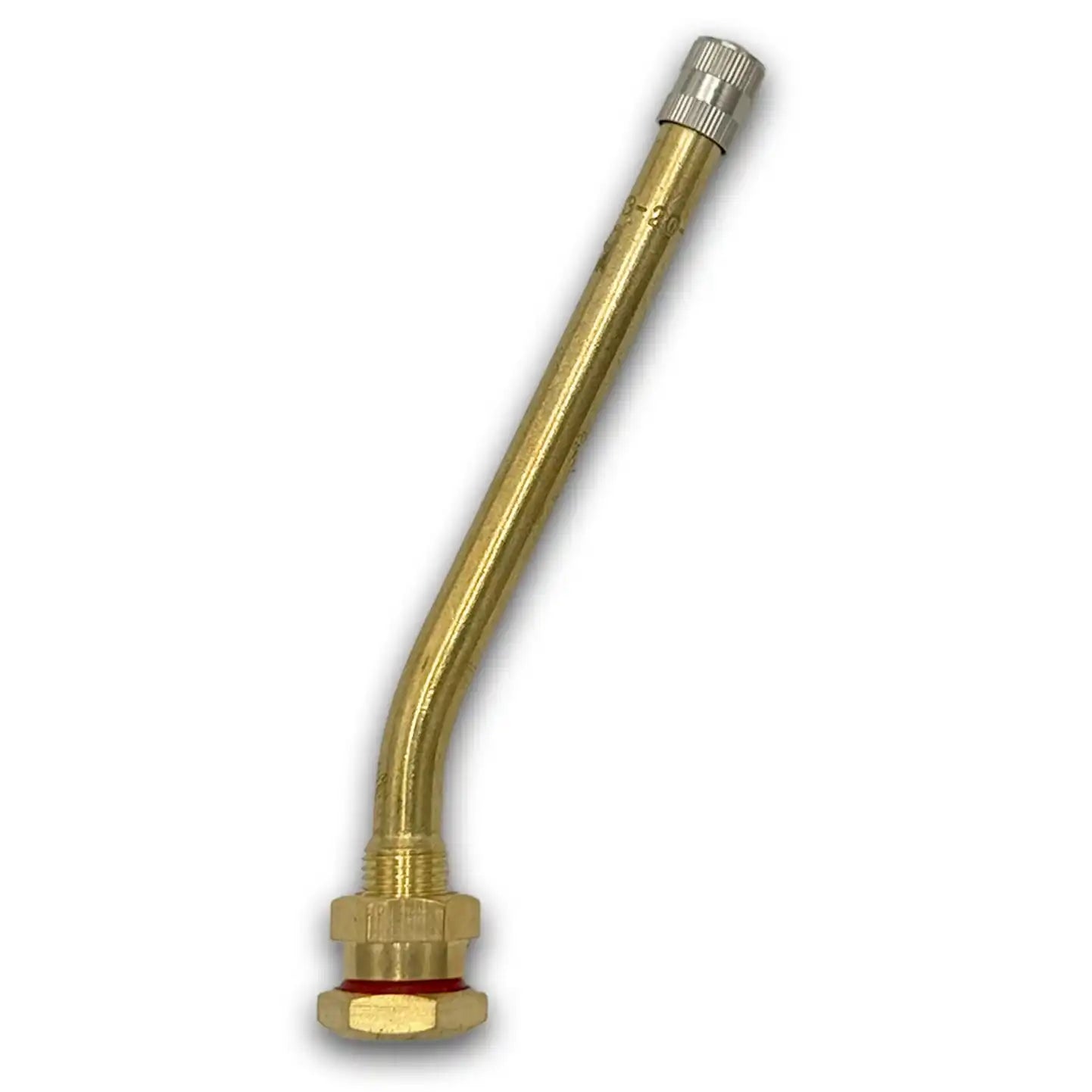

115MS-27 Brass Clamp-In Truck Valve Stem 4.38" 27deg. Bend - 1 Valve
The 115MS-27 is the longest stem in the MS series at 4.38", with a 27° bend, rated to 150 PSI max cold pressure. Designed for the most demanding commercial applications, it serves wheels with extra-deep valve pockets, extended valve boxes, specialty hubcap configurations, or rim designs that require maximum reach combined with angular access.
If shorter MS stems do not provide sufficient reach on your application, the 115MS-27 is the next step up. The 27° bend keeps the valve tip positioned for inflation access even when extended deep into the wheel assembly.
Specifications
- Height: 4.38" with 27° bend
- Valve Hole: 0.382" standard truck/trailer
- Max Cold Pressure: 150 PSI
- Material: Brass body with O-ring seal
- Cross-Reference: 115MS-27, V3-20-6
Frequently Asked Questions
What applications specifically require the 115MS-27?
The 115MS-27 is used when wheel geometry or vehicle configuration requires more than 3.38" of stem. Common use cases include specialty trailer axles, certain military or construction equipment wheels, deep-flange commercial rims, and extended valve boxes that other MS stems cannot reach.
What vehicles and wheels is the 115MS-27 compatible with?
The 115MS-27 fits commercial trucks, semi-trailers, heavy equipment, and specialty vehicles with 0.382" clamp-in valve holes on steel or aluminum wheels.
What is the maximum pressure rating for the 115MS-27?
The 115MS-27 is rated to 150 PSI max cold pressure for commercial truck and trailer tire applications.
What are the cross-reference part numbers for the 115MS-27?
The 115MS-27 is also cross-referenced as V3-20-6. If your records show V3-20-6, this is the same part.
Can I use the 115MS-27 if a shorter stem would technically fit?
It is best practice to use the shortest stem that provides adequate inflation access. Using a stem that is too long can expose more of the valve to road debris and impact. That said, if your application requires the extra length, the 115MS-27 is the correct choice.
